• Copper Screening Machine from ningbo capstian technology

    Cable Wrapping Machine

    Cable Taping Machine, Copper Screening Machine, Steel Tape Armouring Machine, Cable Shielding Machine, Wire & Cable Wrapping Machine, Steel Strip Armouring Line

  • Cable Wrapping$Taping Machines

    Application:

    Wire and Cable Taping & Shielding machine is for vertical or horizontal taping process on the conductor surface or cable jacket surface.

    It used for such as copper and aluminum foils, textile, paper, mica-glass, mica-polyester, PE, PTFE, polyester, steel tape, metal and non-metal material etc.



    Taping head and capstan are driven by independent AC motor.

    HMI+PLC control system to pre-setting pitch, tension and speed.

    Break and end tape, automatic stop.



    According to the winding method is divided into:

    • Tangential type.
    • Concentric type.

    According to the material is divided into:

    • Copper tape wrapping machine.
    • Steel tape armoring machine.
    • Non-metallic wrapping machine.



    According to the tension is divided into:

    • Hysteresis tension.
    • Magnetic powder tension.
  • PB600 Concentric Type Copper Tape Screening Machine from CAPSTIAN technology

    PB600 Concentric Type Copper Tape Screening Machine

    • Max cable diameter: Ø 100mm
    • Applicable copper tape width: 16-60mm
    • Working principle: Concentric wrapping
    • Pitch: :infinitely adjustable
    • Quantity of tape storage:  ≥5 pads
    • Pad diameter: Ø 600mm
    • Speed range: 0-600rpm
    • Motor power: :7.5KW(AC)
    • Break stop: Electric control trigger
    • Equipment center height: 1000mm
    • Hysteresis tension
    • HMI+PLC color touch screen


  • KRB 800 Dual Head Steel Tape Armoring Machine from CAPSTIAN technology

    KRB 800 Dual Head Steel Tape Armoring Machine

    • Pad size: Ø 800mm
    • Armoring speed: 600r/min
    • Steel tape head Pitch: stepless adjustment
    • Motor power: 15kw-AC (AC variable frequency motor)
    • Unwinding tension mechanical friction control.
    • Driven by separate AC variable frequency motor, and the frequency converter adjusts the speed.
    • Pneumatic brake device, Vector monitoring broken tape stop, monitoring full reel, empty reel automatic shutdown compensation.
    • Fully enclosed push-pull safety cove
    • HMI+PLC color touch screen

  • Metal and Non-metal Wrapping Machine Unite from CAPSTIAN technology

    Metal and Non-metal Wrapping Machine Unit

    • Non-metal Pad size: Ø600mm
    • Metal armoring pad size: Ø800mm
    • Speed: 600r/min / 800r/min
    • Steel tape head Pitch: stepless adjustment
    • Motor power: AC variable frequency motor
    • 800kg pneumatic caterpillar
    • PN1600 portal pay-off and take-up and traverse line stand.
    • Fully enclosed push-pull safety cove
    • HMI+PLC color touch screen

  • Multi Taping Machine for Your Requirement

    More wrapping machine of our bow type cabling machine for customer' cable and wire.

    Horizontal non-metallic wrapping machinee  from capstian technology

    Horizontal non-metallic wrapping machine

    Hysteresis type.Pad: Φ500 ×Φ80x(20-60)mm

    Max 650rpm.



    High Speed Copper Tape Wrapping Machinen from capstian technology

    High Speed Copper Tape Wrapping Machine

    Material: copper strip

    Max speed: 700r/min

    Pad: Ø630xØ160x(20-60)mm

    Half Cut Wrapping Machine from capstian technology

    Half Cut Wrapping Machine

    Non woven fabric, etc

    Pad: Φ400 ×Φ420x(20-60)mm

    Speed: 420r/min



    High Speed Half Cut Wrapping Machiner  from capstian technology

    High Speed Half Cut Wrapping Machine

    Non woven fabric, etc

    Pad: Φ500 ×Φ80x(20-60)mm

    Speed: 600r/min

    KBR800 Steel Tape Armouring Machine from capstian technology

    KBR800 Steel Tape Armouring Machine

    Mechanical friction.

    Pad:Φ800xΦ160x(20~60)mm.

    Max 450rpm.

    KBR800 Steel Tape Armouring Machine from capstian technology

    High Speed KBR800 Steel Strip Armouring Machine

    Mechanical friction.

    Pad:Φ800xΦ160x(20~60)mm.

    Max 600rpm.

  • What Material can use on our wrapping head?

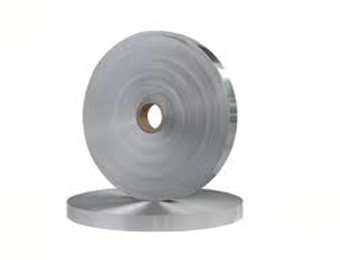

    Aluminum Foils Horizontal non-metallic wrapping machinee  from capstian technology

    Aluminum Foils





     Copper Foils High Speed Copper Tape Wrapping Machinen from capstian technology

    Copper Foils

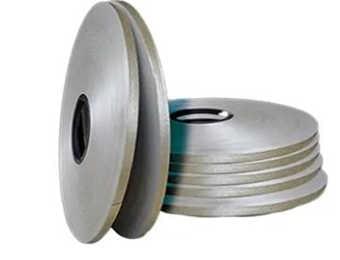

    Mica-polyester Half Cut Wrapping Machine from capstian technology

    Mica-polyester

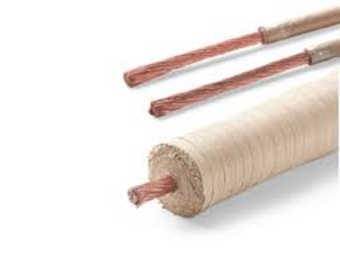

    Paper High Speed Half Cut Wrapping Machiner  from capstian technology

    Paper

    PTFE, PE KBR800 Steel Tape Armouring Machine from capstian technology

    PTFE, PE

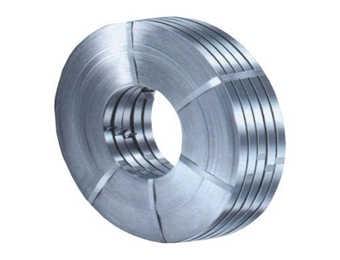

    Steel Strip KBR800 Steel Tape Armouring Machine from capstian technology

    Steel Strip
