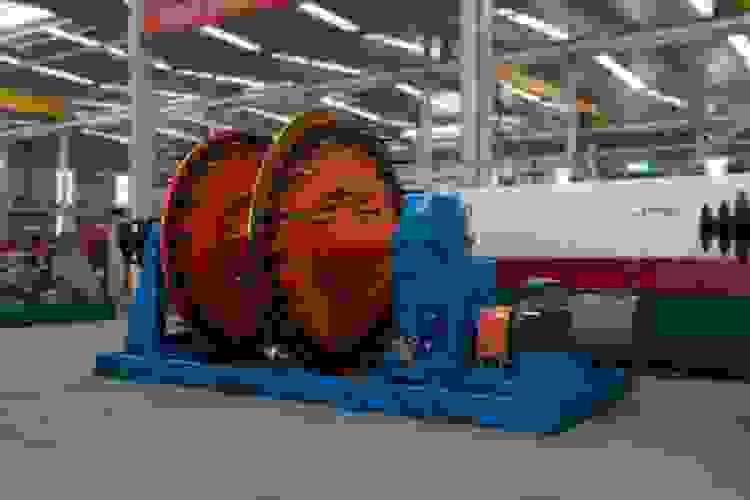

Armouring Line Machine
Armouring Machines, Rigid Armour Machine, Wire/ Strip Armour Machine, Armoured Cables Machines, Steel Wire Armouring Machines, Screening Armoring LineMain Model of Steel Wire Armouing Machine?
Shielding and screening cable for your requirement
Wire Screening Machine GLK315/18
Input dia.:0.8-2.5mm.
Max strand OD: 40mm.
Max rotating speed:98rpm.
Siemens PLC+IHM
Wire Armoring Machine GLK400/30
Input dia.:0.8-3.5mm.
Max strand OD: 50mm.
Max rotating speed:90rpm.
Siemens PLC+IHM
Wire And Cable Shielding Machine GLK630/24
Input dia.:0.8-5.0mm.
Max strand OD: 60mm.
Max rotating speed:68rpm.
Siemens PLC+IHM
Planetary Steel Wire Armoring Machine GLK500/48+48
Input dia.:0.8-5.0mm.
Max strand OD: 60mm.
Max rotating speed:28rpm.
Siemens PLC+IHM
Planetary Steel Wire Screening Machine GLK500/48
Input dia.:0.8-5.0mm.
Max strand OD: 60mm.
Max rotating speed:28rpm.
Siemens PLC+IHM
Planetary Steel Wire Shielding Machine GLK500/36
Input dia.:0.8-5.0mm.
Max strand OD: 60mm.
Max rotating speed:35rpm.
Siemens PLC+IHM
Processing Characteristics of Our Planetary Type Steel Wire Armoring Machine
- The main cage gearbox is a 6-stage gearbox, and the gear material in the gearbox is 20CrMnTi. After high-temperature nitriding.
- The stranding cage is composed of gearbox, seamless tube hollow spindle, wire reel frame, pneumatic brake device, etc. (36 synchronous tubes are installed in the spindle of the second 36 disc winch cage, and 72 steel wire pre deformation devices are equipped in front of the winch cage).
- Tension band is used to adjust the tension of the wire reel frame in the cage, which can keep the tension of the core wire released from each cradle stable and balanced; The top of the wire reel adopts trapezoidal thread structure.
- Each cage is connected with the main shaft through tensioning sleeve or flange, supplemented by multi-channel tugboat support, with good overall rigidity, high coaxiality of winch and stable operation of winch cage.
- The main stranding cage is divided into 9 equal parts, arranged in four gears, and 9 wire reel racks are placed in each gear; The main shaft is thick wall seamless pipe. All wire nozzles adopt tungsten steel mold or ceramic mold
GLK300/36+36 Mini Steel Wire Screening Machine/Drum Type Armoring Machine
- Wire diameter: 0.5-2.0mm
- Gear driving, 36 bobbins (front 18 and rear 18 on both sides).
- Friction tension, pneumatic brake.
- Concentric wrapping head: magnetic particle tension
- Dia.800mm double traction wheel
- Dia.1800mm vertical shaftless take-up
- Frequency conversion synchronous control

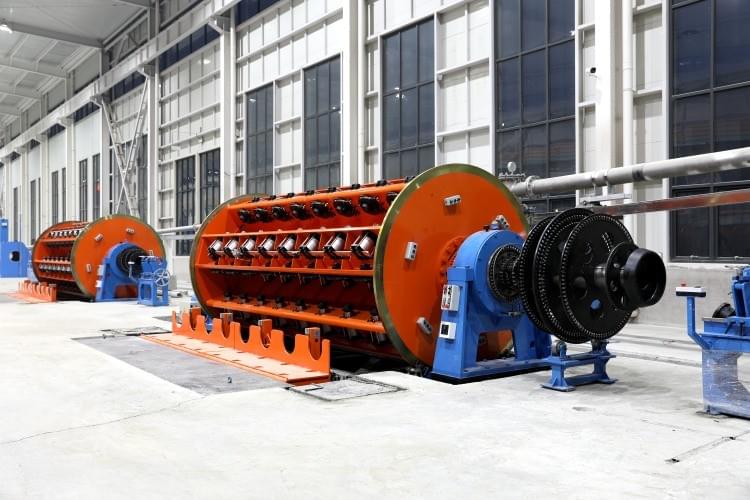

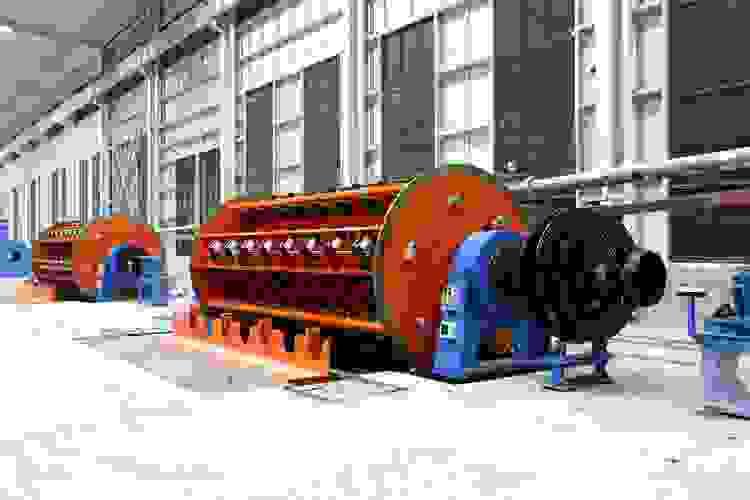

48 Bobbins Rigid Armour Machine( BATCH LOADING – AUTOMATIC)
TYPE:Rigid bobbin, pintle type, Wire/ Strip Armour machine
PURPOSE:To produce up to Armoured Cables upto 48 Wire/ Strip Armour This machine will be used for Armouring of Power Cables , Control Cables, Instrumentation Cables.
High speed performance.
Trouble free operation.
Easy maintenance and operation.
Twisting of Steel Wires and Laying Up of Control Cables.
MATERIAL: GI Round Wire / GI Strip/ Steel Round Wire/ Insulated Cores WIRE SIZE: 0.8 mm – 3.5 mm / 4 mm X0.8mm
CABLE SIZES : 8 mm – 50 mm Cables to be Armored. CONFIG. :48 ( Single Cage)
NO. OF BOBBINS :48[rotating ] – 100 Pcs 450 mm Spools to be provided with Machine
CAGES: Single Cage is Frame Type structure supported on spherical roller bearings at both ends. Drive through totally enclosed gearboxes with case hardened and profile ground gears.More Technical Sheet Cable Screening Line
Rigid Type Assembling Armouring Line JLK-500/96 Flat Wire
JLY-500/48+48 Cradle Type Steel Wire Armoring Machine
Машина планетарной скрутки GLK-500-630/1+6+12+18+24
CABLEADORA PLANETARIA GLK500-630/1+6+12+18+24
Крутильная машина жесткорамного типа с отдельным мотором CAPSTIAN 6+12+18+24/630
