    Bow Type Laying-up Machine

    Bow Type Stranding Machine, Bow Twister, Bow Stranders, Skip Stranding Machine, Bow Cabler, Bow Type Bunching Machine

  • Bow Type Stranding Machine Manufacturer

    Application:

    This machine is suitable for stranding 2-6 cores ABC overhead cable, control cable or power cable from 10-120sqmm. Instead of the low speed cradle laying-up machine and small cross-section cabling machine.



    • This machine can use independent or ground shaft driving..
    • HMI+PLC control system for pre-setting laying up pitch.
    • Brake form: mechanical disc brakes manually adjustable.
    • Tension control system consisting in powder
    • Constant when going from full bobbin to empty bobbin.
    • Max 24 filling frame



    Skip/Bow Stranding Machine

    We offers a range of High Speed Skip / Bow Stranding Machines for Copper and Aluminum Wire Stranding and Insulated Core Twisting for Multi Core Cables. This Strander is used for making round and sector shaped strand for Cables ( 7 Strand or Flexible) and Over Head Conductors (AAC/AAAC/ACSR).



    Feature:

    • The internal tension control by magnetic clutch,available to step-less regulating on the operation panel.
    • Laying pitch setup free by the HMI touch screen, much more labor saving instead of changing by gears.
    • Widely application range, can be used for annealed copper/aluminum wire,as well as insulated cores.
    • The working bows is alternative according to actual demands,available for online wrapping & filling.
    • The twister insides which suitable for drums belowφ630 can be chose electric lift,others by crane.

    Main Components:

  • Main Model of Bow Type Laying-up Machine?

    Different configurations are used according to the specifications of customer' cables.

    Bow Type Laying-up Machine GJ1250/1+4  from capstian tech
    Bow Type Laying-up Machine GJ1250/1+4

    Cabling 3-5 core wire from 5-12mm.

    Max rotation speed reach to 160rpm.

    manual clamping and loosening reel

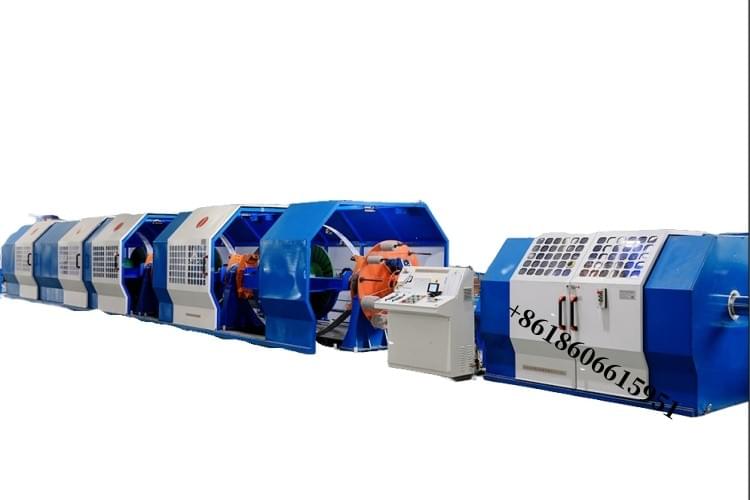

    Bow Twister Line GJ1000/4 capstian tech

    Bow Twister Line GJ1000/4

    Cabling 4 core 4-14mm insulated wire.

    Manual clamping and loosening reel.

    Break lline emergency stop

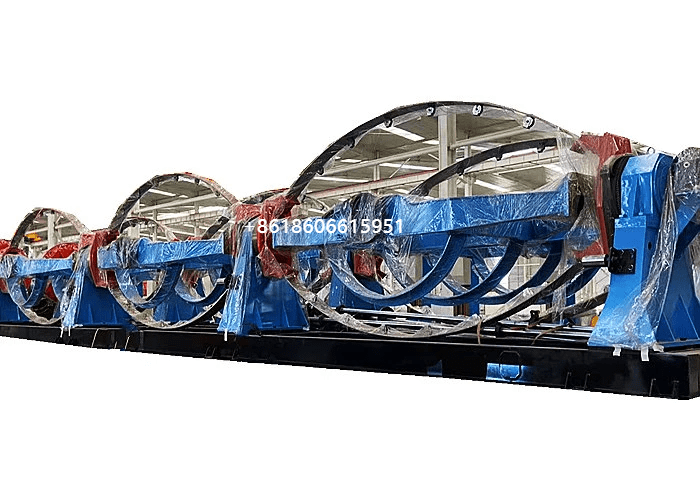

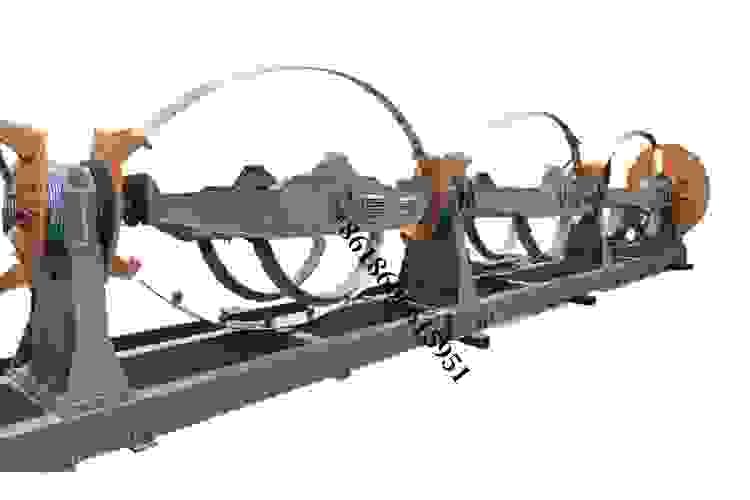

    Bow Stranding Machine GJ1250/1+3 from capstian tech
    Bow Stranding Machine GJ1250/1+3

    Cabling 4 core 4-20mm insulated wire.

    Manual clamping and loosening reel.

    Break lline emergency stop

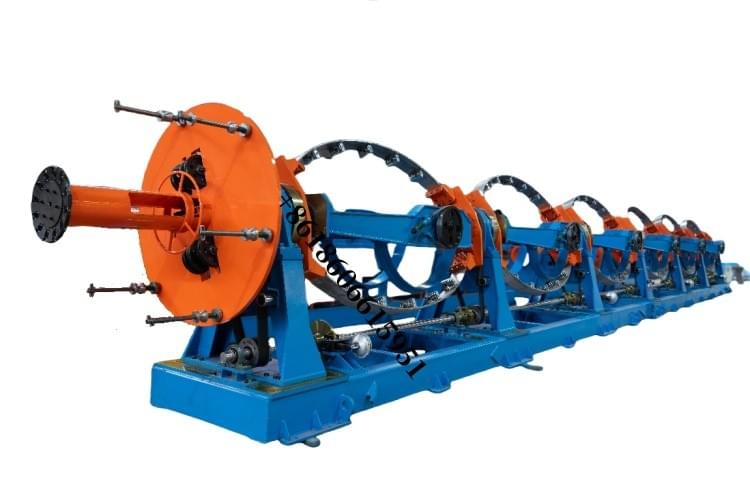

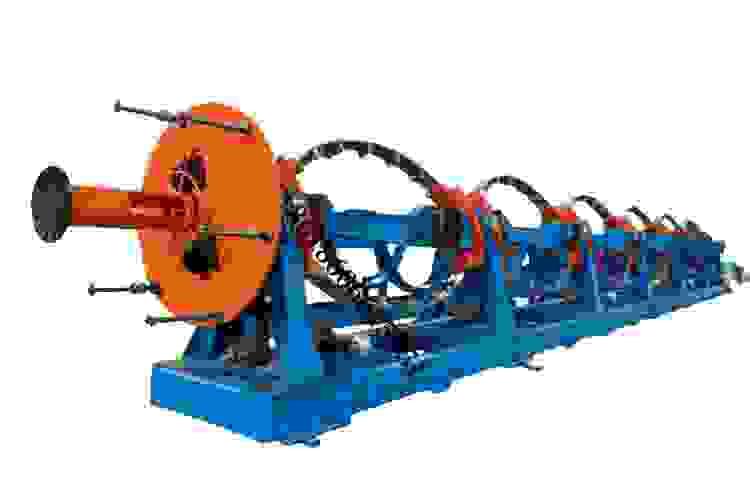

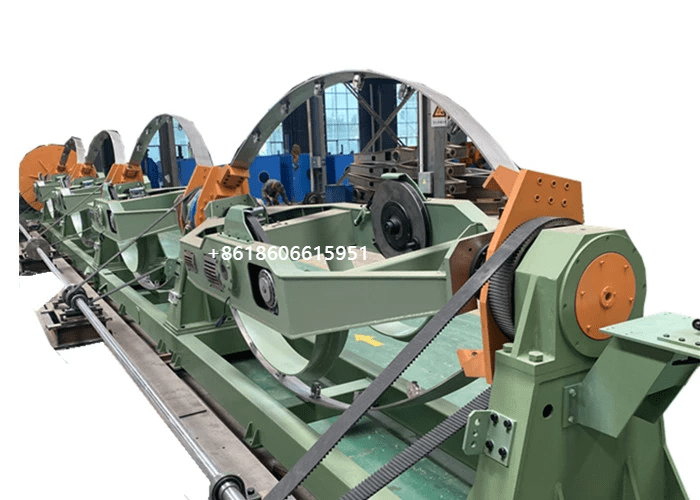

    Bow Type Cabling Machine GJ1600/1+3  from capstian tech

    Bow Type Cabling Machine GJ1600/1+3

    Cabling 3-4 core 8-25mm.

    Hysteresiss tension control.

    Max rotation speed reach to 160rpm.

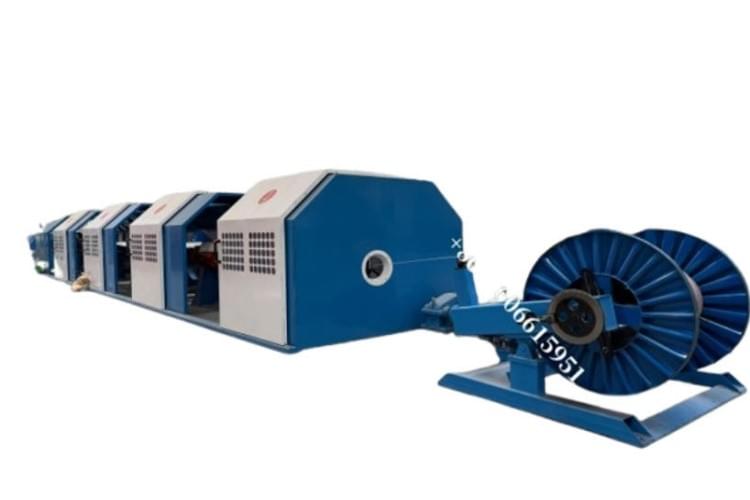

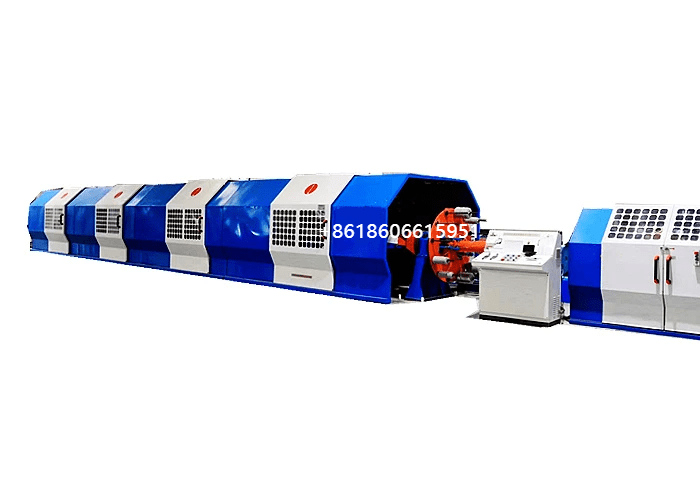

    Bow Strander/Cabler Machine GL1250/1+5 from capstian tech

    Bow Strander/Cabler Machine GL1250/1+5

    Cabling 6 core 10-120 sqmm.

    8-20mm insulated wire.

    Manual clamping and loosening reel.

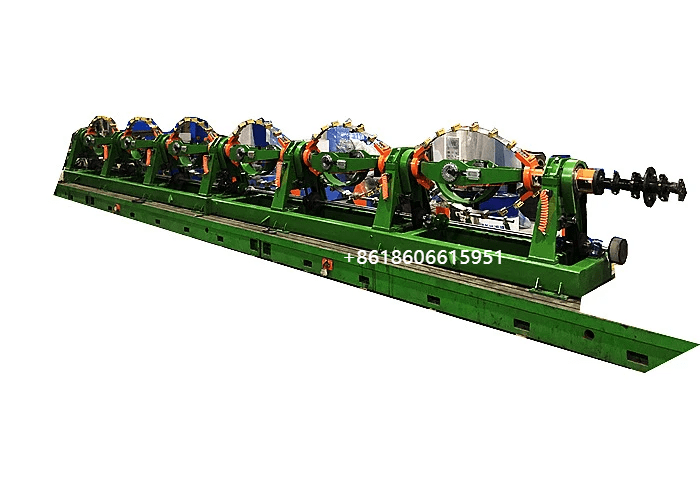

    Skip Stranding Machine GH630/1+6 from capstian tech
    Skip Stranding Machine GH630/1+6

    Input Single wire diameter:.5-4.0mm Cu, 1.8-5.0mm Al, 1.0-3.0mm St,1.5-8.0mm Insulated.

    Max rotation speed 1008rpm.

  •









  • Multi Components to Choose for your production

    More components of our bow type cabling machine for customer' cable and wire.

    Portal Take-ups of laying up machine  from capstian technology

    Portal Take-ups

    PLC+touch screen control.

    AC motor driving.

    3-stage variable speed regulation.

    Hysteresis Tension from capstian technology

    Hysteresis Tension

    Hysteresis tensioner is used to provide the setting out tension in the winch cage

    Pnuematic Caterpillar of laying up machine  from capstian technology

    Pnuematic Caterpillar

    The cable is tightened and loosened pneumatically, tensioned pneumatically, driven by motor, stepless speed change

    Positive Side Straightener  from capstian technology

    Positive Side Straightener

    GJ630/1+6 skip strander with 2 groups of modulators in the vertical and horizontal directions.

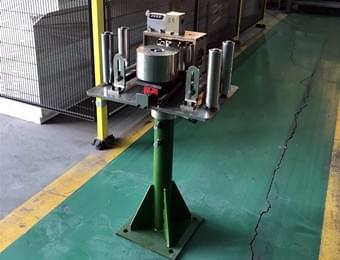

    Meter Counter from capstian technology

    Meter Counter

    Diameter of meter wheel: Ø 500mm
    Mechanical and electronic double meter counting.

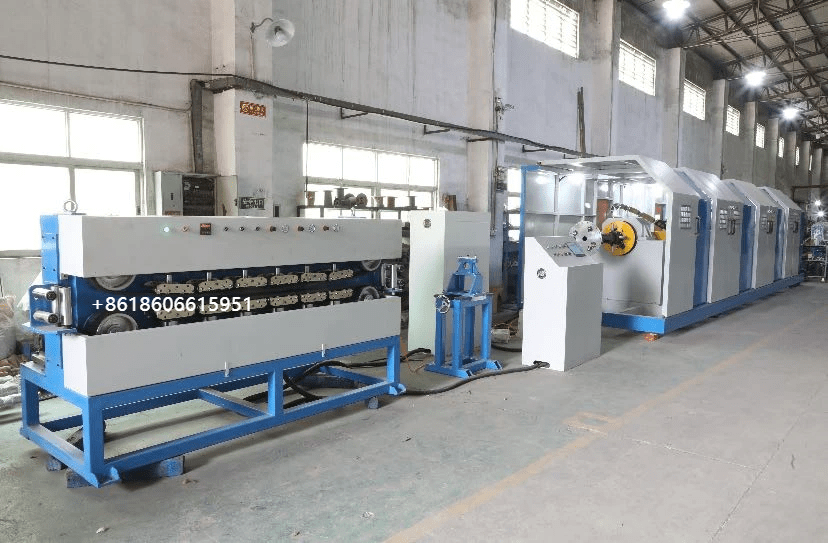

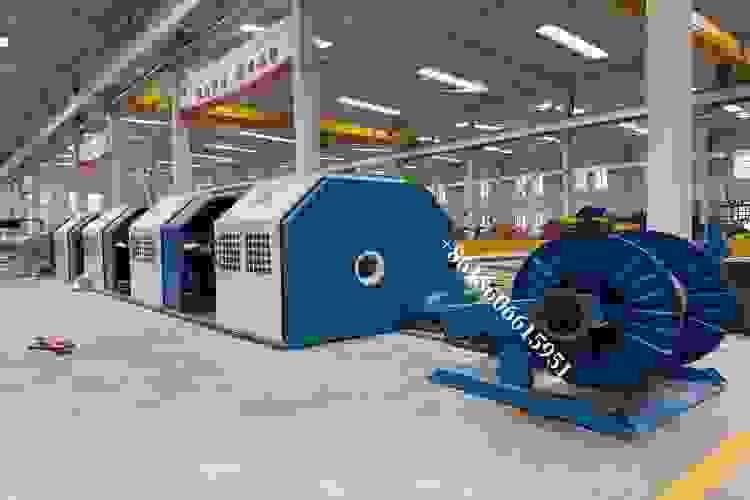

  • Our Manufacturing Process of Bow Stranding Machine from CAPSTIAN technology

    Our Manufacturing Process of Bow Stranding Machine

    • Structure composition: the main machine of bow stranding machine is composed of stranding bow, reel cradle frame, support, base, transmission system, filling frame, etc. the overall design structure is reasonable and beautiful.

    • Transmission system: the winch is driven by 45KW frequency conversion motor. The transmission system is driven by the transmission shaft through the toothed belt. Each cradle is driven by the front and rear toothed belts. The winch itself does not bear torsion.

    • Cradle frame: both ends of the cradle are supported by bearings, and the cradle adopts end shaft type manual clamping reel with mechanical locking mechanism to prevent the reel from being thrown out.

    • The pay-off tension is provided by mechanical friction, and the tension is manually adjusted.

    • The twisted bow is made of special steel, and each pair of twisted bows is tested for static balance.

    • Braking system: the whole machine is braked by plane air brake, and multiple groups of air brake act at the same time, so the braking is efficient.

    • Shield: the main engine adopts fully enclosed box type safety shield, and the opening mode is manual sliding door type.

  • Advantages of Our Bow Twister machine?

    Faster than traditional cabling machines

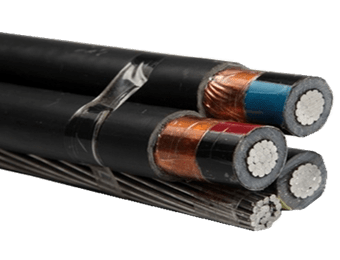

    Aerial Bundled Cable production of CAPSTIAN TECH

    Aerial Bundled Cable

    ABC-aluminum cable production of CAPSTIAN TECH

    ABC-aluminum

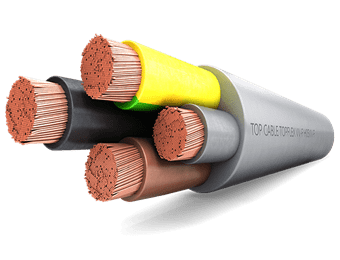

    Control Cable production of CAPSTIAN TECH

    Control Cable

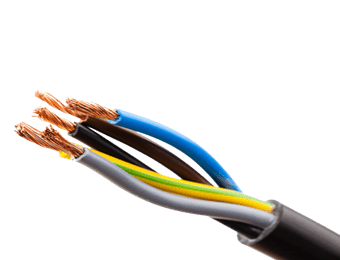

    Multi Core Flexible Cable production of CAPSTIAN TECH

    Multi Core Flexible Cable

  • Multi Taping Machine for Your Requirement

    More wrapping machine of our bow type cabling machine for customer' cable and wire.

    Horizontal non-metallic wrapping machinee  from capstian technology

    Horizontal non-metallic wrapping machine

    Hysteresis type.Pad: Φ500 ×Φ80x(20-60)mm

    Max 650rpm.



    High Speed Copper Tape Wrapping Machinen from capstian technology

    High Speed Copper Tape Wrapping Machine

    Material: copper strip

    Max speed: 700r/min

    Pad: Ø630xØ160x(20-60)mm

    Half Cut Wrapping Machine from capstian technology

    Half Cut Wrapping Machine

    Non woven fabric, etc

    Pad: Φ400 ×Φ420x(20-60)mm

    Speed: 420r/min



    High Speed Half Cut Wrapping Machiner  from capstian technology

    High Speed Half Cut Wrapping Machine

    Non woven fabric, etc

    Pad: Φ500 ×Φ80x(20-60)mm

    Speed: 600r/min

    KBR800 Steel Tape Armouring Machine from capstian technology

    KBR800 Steel Tape Armouring Machine

    Mechanical friction.

    Pad:Φ800xΦ160x(20~60)mm.

    Max 450rpm.
