    What is LAN Cable?

    The most common use for an Ethernet cable is connecting a WiFi router or modem to the internet entry port or telephone line. Currently in the market most popular Lan cable is CAT5, CAT5E, CAT6, CAT6A, CAT7. we can make optional complete production proposal according to customer’s requirement.



    How to product the LAN cable?

    • Skin foam skin layer co-extrusion.

    • Two insulation core wire pair-twisting to one core.

    • Cabling 4 pairs core wire to cabling, and wrapping the shielding layer. eg, aluminum foils.

    • Cat7 cable use braiding machine to making shield layer.

    • Extruding insulation jacket layerof lan cable and data cable.

    • Coiling and packing the finished wire to sell.

    Our Advantage:

    • Full atuomatic operating machines, easy to maintain.
    • Participate in and assist the construction of the new factory.
    • Tailor made production machines suitable for customers' operating habits.
    • Training on process manufacturing of LAN cable.
    • Quickly install and train workers to operate until they are fully mastered.
    • 24-hour technical support and free lifelong technical guidance.
    • Supply of ultra-low wearing parts.
  • LAN and telephone cables insulation line from ningbo capstian technology

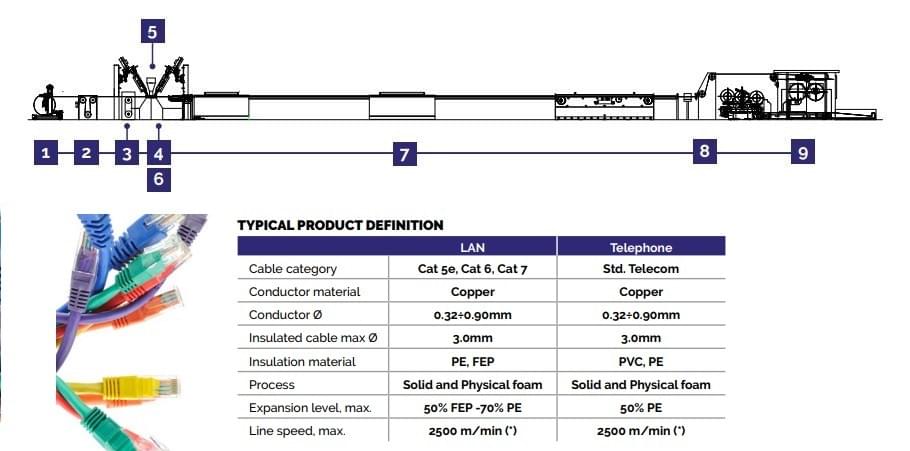

    LAN and telephone cables insulation line

    For solution for the production of LAN (up to Cat. 7) and telephonic cables with different thermoplastic materials (PE, FEP, PVC).
    Multiple line configurations guarantee efficient production with high speeds and low scrap

    LINE TYPES:

    Standard: Solid PE and Physical PE Foam – expansion up to 70%

    • Tandem: Wire Drawing machine tandem with the line
    • FEP: Solid FEP or Physical FEP foam and Solid PE

  • Network Cable Making Process machine from CAPSTIAN technology

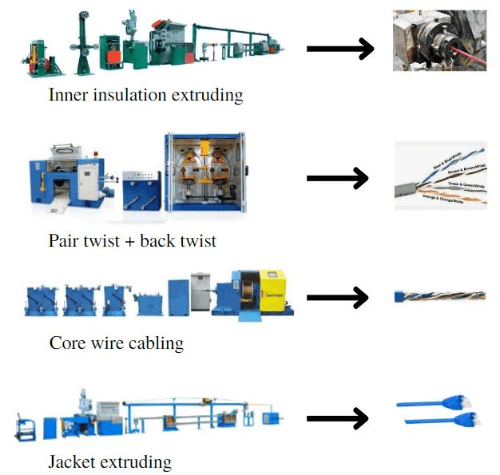

    Network Cable Making Process:

    • Core wire extrusion: 50+35 cable extruder.
    • Core wire pair twist: 500 pair twisting machine+500 back-twist machine.
    • Pair wire to cabling: 800 cantilever single twist machine with aluminum foils wrapping unit.
    • Cable shielding: 16/24 spindle braiding machine.
    • Out jacket extrusion: 70 or 80 cable extruder
    • Coiling and packing: Wire coiling and packing machine.

  • broken image

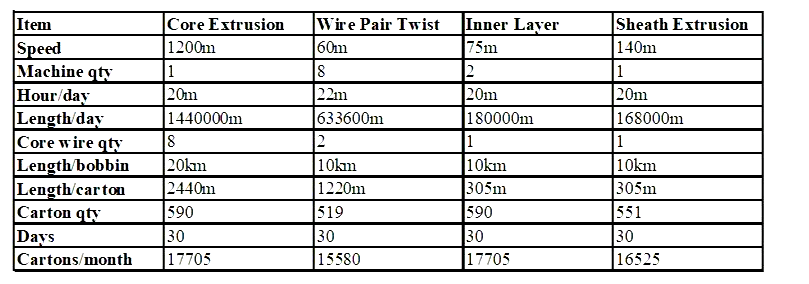

    LAN Cable Machine Parameter

    • 50+35 Core wire extruder line:1 set
    • 500P pair twisting machines:4 sets
    • 800 cantilever single twisting machine :1 set
    • 70 LAN cable sheath extruder line:1 set

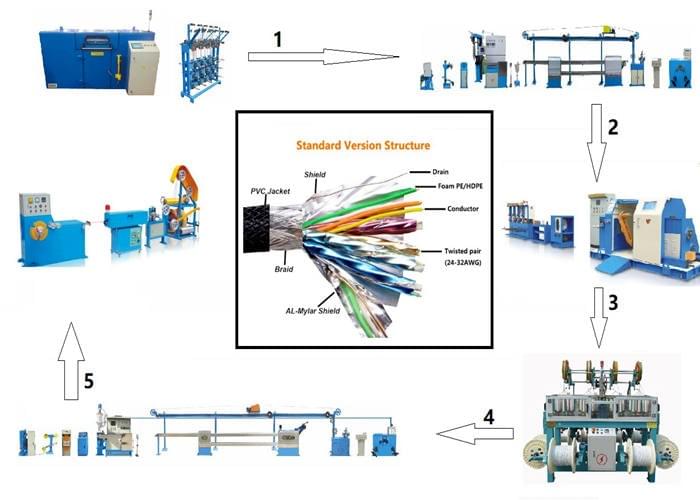

  • different purpose 800KG-5000kg Pneunatic Caterpillar for You from CAPSTIAN technology

    USD/HDMI Cable Production Line

    1. 300 or 500 high speed bunching machine for multi conductor.

    2.SJ-50+35 foaming extrusion line machine forcore wire.

    3. Cabling core pair twist machine for two core wire. or cantilever single twist machine with taping machne.

    4. 16 spindle Braiding machine for shileding layer.

    5.SJ-70/25 cable sheathing machine for outer insulation jacket.

    6. Finished wire coiling and packing machine.

  • High Speed Production Machines for Network Cable

    Main machine technical parameters of lan cable and data production machines

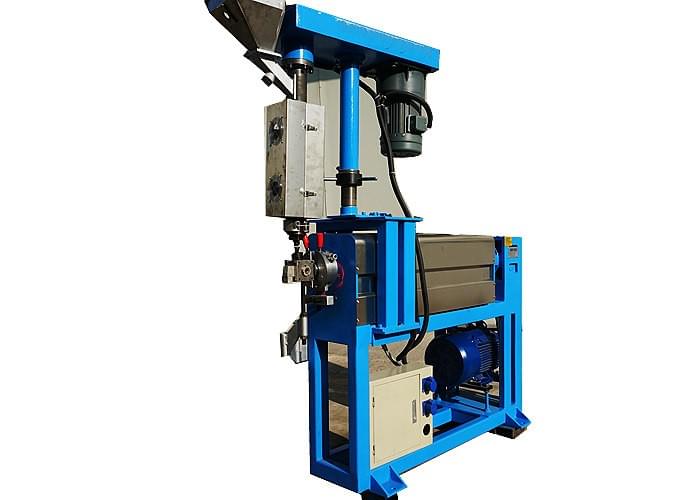

    SJ-50+35 Cable Extrusion Line from capstian technology

    SJ-50+35 Skin Foam skin co-Extrusion Machine

    Applicable material: Foam‐PE.

    Insulation method: Skin‐Foam‐Skin.

    Conductor diameter: 0.15‐0.5mm.

    Insulation external diameter: 0.5‐1.5mm.

    Maximum line speed: Max.500m/min.

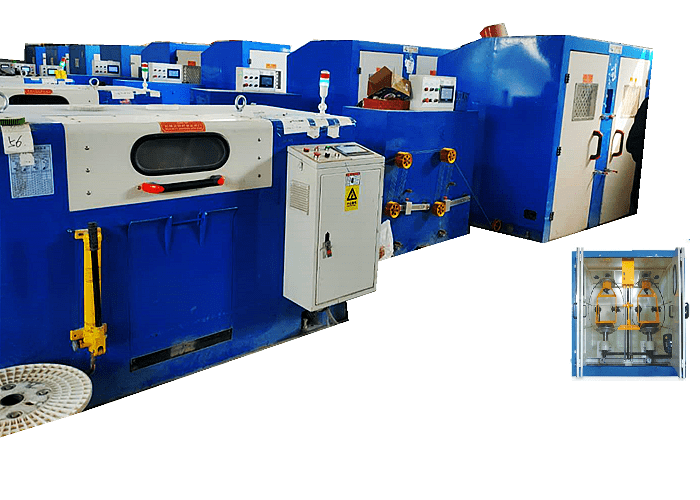

    JX-500 Pair Twist + 500 Back-twist Machine from capstian technology

    JX-500 Pair Twist + 500 Back-twist Machine

    Pair twist machine reel dia: 500mm.
    Back twist machine reel dia: 500mm.
    Input wire diameter: max 1.5mm.
    Rotation speed: max 2400rpm.
    Line speed: max 140m/min.

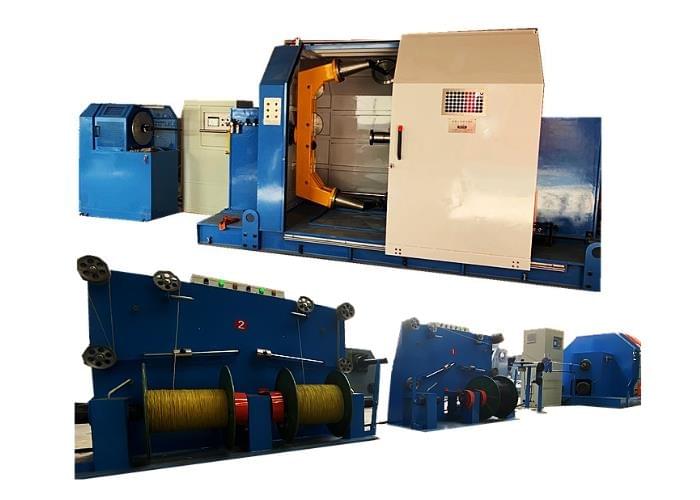

    JX-800 Cantilever Single Machine from capstian technology

    JX-800 Cantilever Single Machine

    Pair core wire dia: Ф0.5mm-4.0mm.
    Finished twisted OD: Ф15mm
    Pay off reel diameter: Φ500
    Winding reel diameter: Ф800mm
    Wrapping speed: 2000rpm
    Take-up speed: 800r/min

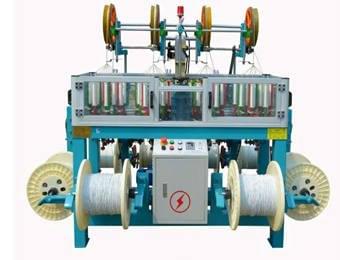

    Stranding Machine Purpose wheel capstan from capstian technology

    16 Spindle Braiding Machine

    Suitable for braiding and shielding lan cable and data cable.
    Cable diameter:Max 14mm.
    Production speed:Max 600m/hour.
    Spindle speed: 60-180rpm
    .Automatic control sytem.

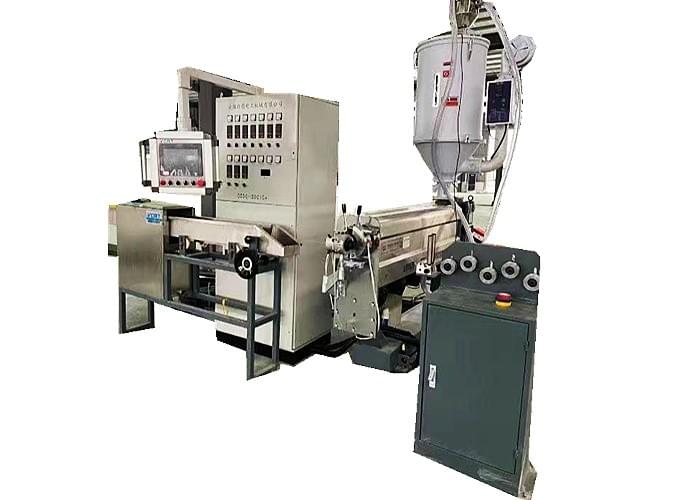

    SJ-70 Sheath Cable Extruder from capstian technology

    SJ-70 Sheath Cable Extruder

    Finished OD: Φ2-Φ15.0mm.
    Extrusion output: 180kg/h.
    Extrusion material: PVC, LSZH.
    Line speed: max.300m/min.
    Siemens PLC+ Motor

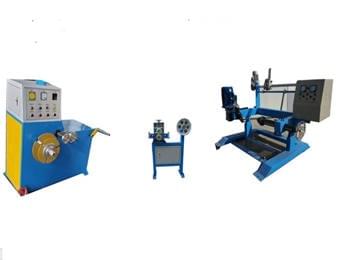

    Coiling and Packing Machine from capstian technology

    Coiling and Packing Machine

    1000- 1250mm driven pay-off.
    Tension cable accumulator.
    Coiling machine(customized).
    Line speed: Max 500m/min
    Seni-automatic control.

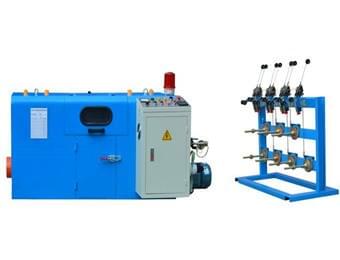

    300 or 500 high speed bunching machine from capstian technology

    300 or 500 high speed bunching machine

    Input wire dia. 0.08-0.45mm. 2.5mm2.
    Take-up reel: 500mm.
    Rotation speed: Max 2200rpm/min
    Material: enameled wire, bare copper wire, core wire.
    Siemens inverter control.

  • What kind of cable and wire our machines can make?

    Main cable and wire of BEYDE network making machine manufacturing.

    SJ-50+35 Cable Extrusion Line from capstian technology

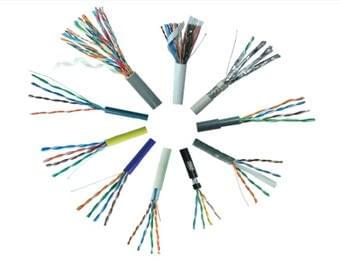

    CAT5/6/7 Cable

    JX-500 Pair Twist + 500 Back-twist Machine from capstian technology

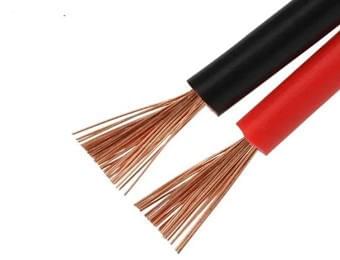

    Electric Wire

    JX-800 Cantilever Single Machine from capstian technology

    HDMI DP Wire

    Stranding Machine Purpose wheel capstan from capstian technology

    USB 2.0/3.0 cABLE

  • More videos of network cable machine
