China Silicone Rubber Cable Extrusion Line

Silicone Rubber Cable Extruder
Silicone Cable Extrusion Line, Silicone Rubber Wire Production Machine, High Tempermeture Silicone Rubber Cable Sheathing Machine
Get Catalogue Now
BEYDE Silicone Rubber Cable Extruder
Application:
Silicone rubber is an elastomer (rubber-like material) composed of silicone, which can be found in a wide variety of products including medical devices and implants, electronics, automotive applications, voltage line insulators, and in home repair and hardware.

Main advantages of our silicone rubber wire production machine:
Excellent end product quality in terms of insulation integrity and surface uniformity
Easy to operation
Low material waste
No shutdown during drum replacement
No foundation required
1. PLC+touch screen operation to complete the control, adjustment and monitoring of production process parameters.
2. Special silicon screw, screw chamber, machine head and mold to protect the internal vulcanization structure.
3. Special silicon automatic machine heating device and automatic or manual cooling system.
4. Equipped with accuracy detection feedback system to ensure OD accuracy and reduce cost.

Main Components:
Pay-off stand.
Input wire tension device.
Silicon rubber extruder extruder.
Extruding cross-head.
Stainless steel vulcanization drying pipe
Cooling device.
Label Printer
Double wheel capstan.
Take-up and arrange line machine .
Control system.
Silicone Cable Extrusion Line
Main models of our silicone cable extrusion line

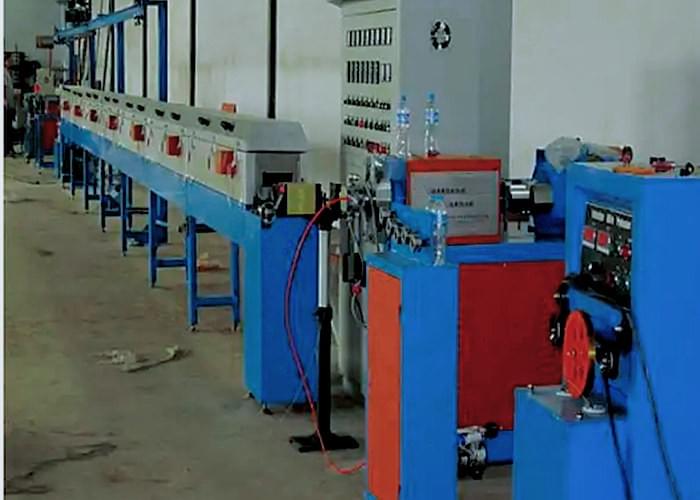

SJ45-50/12 Silicone Rubber Cable Extrusion Line
Input wire diamete:0.2-3.0mm.
Finished cable dia :0.8-5.0mm.
Screw rod speed: 5-70rpm.
Line speed: 150m/min.
Extruding capacity: 30kg/h.
Offer independently

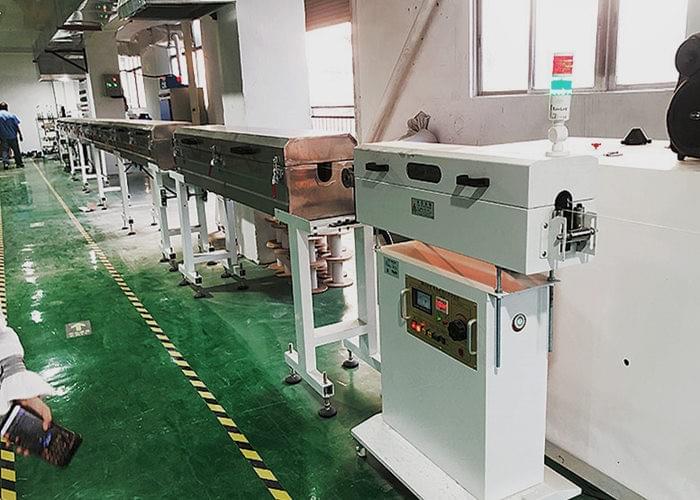

SJ65-70/12 Silicone Rubber Cable Extruder Machine
Input wire diamete:0.3-5.0mm.
Finished cable dia 1.0-8.0mm.
Screw rod speed:5- 60rpm.
Line speed: 200m/min.
Extruding capacity: 60kg/h.
Offer independently

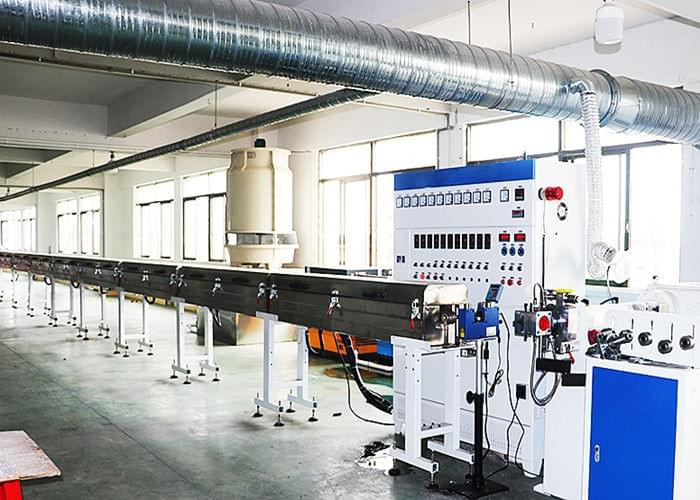

SJ80-90/14 Silicone Rubber Cable Coating Line
Input wire diamete:5.0-50.0mm.
Finished cable dia 6.0-6.0mm.
Screw rod speed: 5-70rpm.
Line speed: 200m/min.
Extruding capacity: 150kg/h.
Offer independently
SJ120/14 Silicone Rubber Cable Sheath Production Line
Input wire diameter: 6.0-68.0mm.
Finished cable dia 10.0-70.0mm.
Screw rod speed: 80rpm.
Line speed: 200m/min.
Extruding capacity: 250kg/h.
Offer independently
High Tempermeture and Speed Silicone Rubber Cable Sheathing Machine
High speed fryer pay-off.
Siemens PLC+IHM+Inverter control.
Schneider low voltage apparatus.
High productivity and high quality products.
High quality equipment manufacturing and materials and raw materials used.
Intuitive line control and parameter setting on the control panel.
Reduce energy consumption.
Touch screen displays line operation parameters;
This machine can be operated by left and right hands.
Good looking appearance.
The engine, gearbox and other supporting products are of high quality and meet European quality standards.
It is easy to transport and install equipment at the production site of customers.
Start you customized
Multi components to meet your production
According to prodcution demand to choose different component of silicone rubber extruder

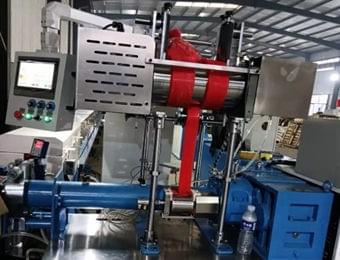

Rubber material hopper
Head: Haff clamping, easy to operate.
Gear box: 40Cr quenching and tempering is used for all gears, high-frequency quenching and the surface hardness is hrc50-55. The shaft is 45# steel. the box is cast iron. The gear is grinded with helical tooth surface, the gearbox is connected with screw by spline, and one-way roller thrust bearing.

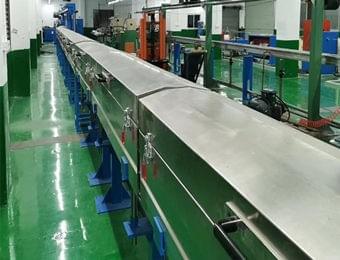

Vulcanization tank
All are made of stainless steel, electrically heated,
double-layer insulation, and Japanese RKC intelligent electronic
display calculus temperature controller.
manually adjusted between 0-399 ℃,
control accuracy is ± 2 ℃

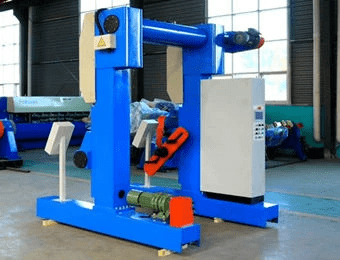

Portal type take-up and traverse stand
Applicable bobbin size range : 800-3150mm
Max load capacity : 4-20T
Tip diameter : Ø 80/125mm
Maximum take-up speed : 7-85m/min
Wire diameter range : Ø 4-140mm
Motor power: 5.5-7.5kw.

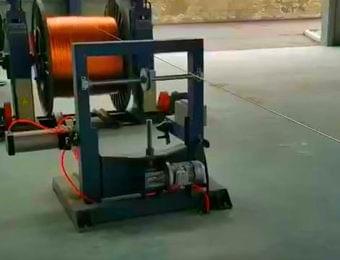

630mm Gate&Door type Active pay-off Stand
Door type passive pay-off.
Bobbin size:PND500-PND630
Wire Diameter Range: soft wire Φ1.0-Φ5.0mm, hard wire: 1.5mm2
Pay-off Power:5.5KW
630mm Dual Bobbin Take-up and Traverse Line Stand
Take-up bobbin size: PND400-PND630.
Max load capacity: 0.8t.
Max diameter of cable: Φ15mm.
Max take-up speed: 220m/min.
Take up motor: 40nM torque motor.

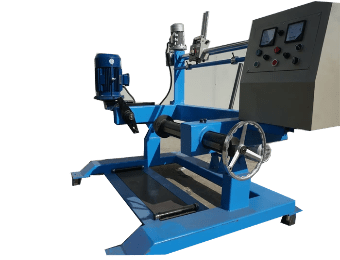

630mm No Shaft Type Single Bobbi00-2500kg pneumatic caterpillarn Take-up and Traverse Line Stand
Bobbin size:PND500-PND630.
Manual clamping.
Max take-up speed: 220m/min.
ake up motor: 40nM torque motor.

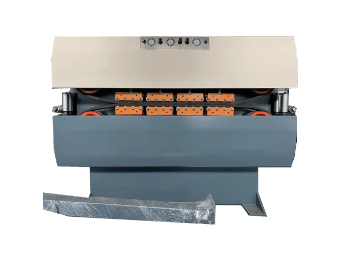

500-2500kg pneumatic caterpillar
AC motor, frequency inverter speed contro
Four speed gearbox, worm reducer
Infrared meter counter, meter recording error ≤ 3 ‰
Rubber tape prevents damage to the cable
High precision display of ammeter, tachometer and voltmeter
Dual Cone Type Fry Pay-off Stand
Load capactiry : 500 kg
Wire Diameter ∅0.6 ~ ∅3.0
Description:
Dual cone wire pay off, allowing a non-stop bobbin change for high speed
Reel size: 630/800/1250mm.
Max speed: 500m/min.
What kind of cable and wire our machines can make?
Main cable and wire of silicone rubber cable production manufacturing.

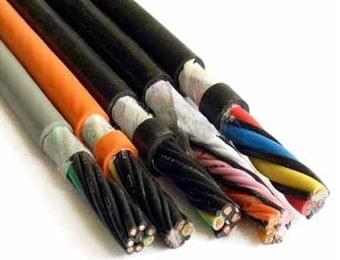

Silicone rubber control cable

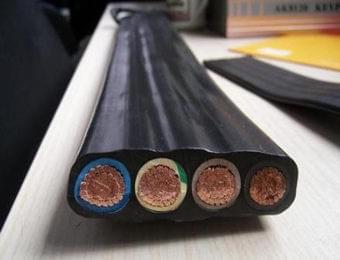

Silicone rubber flat cable

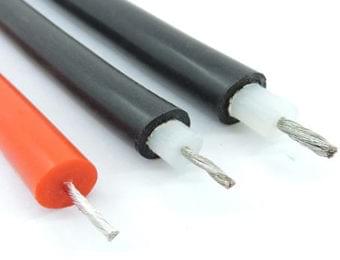

Silicone rubber HV cable

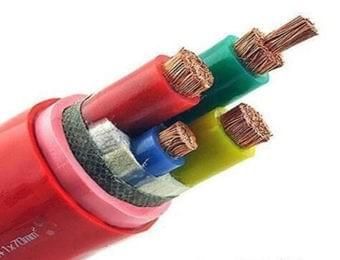

Silicone rubber power cable

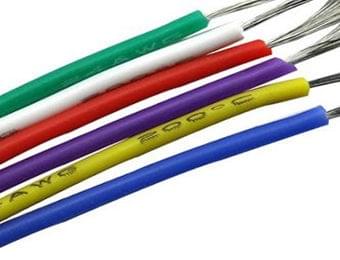

Temperature resistant silicone rubber flexible cable
More videos of rubber cable machine
