    Drum Twister Line

    Drum Type Laying-up Machine, High Speed Type Laying Machine, Drum Twister Laying-up Machine, Drum Type Cabling Machine

  • Drum Type Laying-up Machine Manufacturer

    Application:

    Drum Twister Line is used for big cross-section cable and wire, process parameters can be set, real-time monitoring of operating conditions, simple, convenient and fast operation.

    • Big round and sector conductors.
    • LV/MV cables: lay-up of Cu or Al conductors.
    • HV cables (Milliken): lay-up of Cu conductors.
    • Screening and armoring operations.
    • Bundle construction telephone cable.

    Function:

    • Back twist 100%
    • Lay up power conductors with 2/3/4/5/6 round cores and straight or sector shape cores.
    • Filling, metal or non-metal taping.
    • Max 96 steel wire armoring pay-off and wire pre-twist device.
    • AC or DC motor drive, production line synchronous operation is realized by control system.
    • Free set of lay pitch and direction.
    • Automatic HMI+PLC control system.



    Main Components:

  • Main Model of Drum Twister Laying-up Machine?

    Laying up power cables with great cross section and length

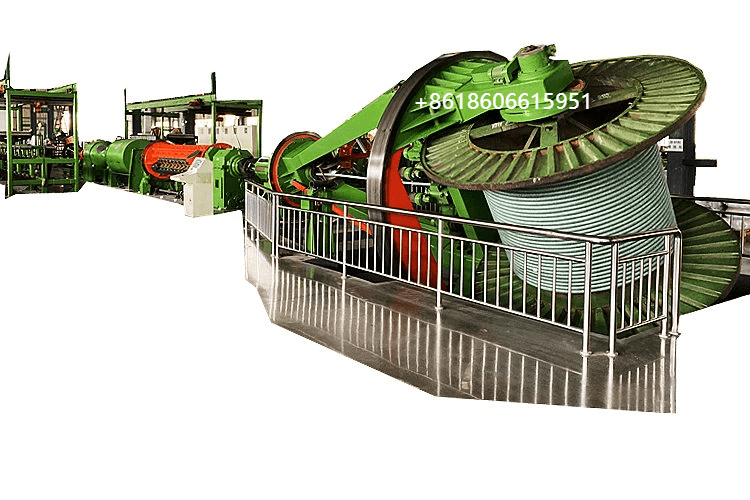

    Drum Type Lay-up Machine 3x1600 Pay-off and 2500mm Take-up from capstian tech
    Drum Type Lay-up Machine 3x1600 Pay-off and 2500mm Take-up

    Cabling O.D.:Φ25~Φ100mm
    Max. Rotating speed of T/U & P/O: 40r/min

    PLC+IHM Siemens

    Reset protection for all hydraulic lifters

    Drum Twister Line with 4x1250 Pay-off and 1800mm Take-up  from capstian tech
    Drum Twister Line with 4x1250 Pay-off and 1800mm Take-up

    CaCabling O.D.:Φ25~Φ100mm
    Max. Rotating speed of T/U & P/O: 40r/min

    PLC+IHM Siemens

    Reset protection for all hydraulic lifters

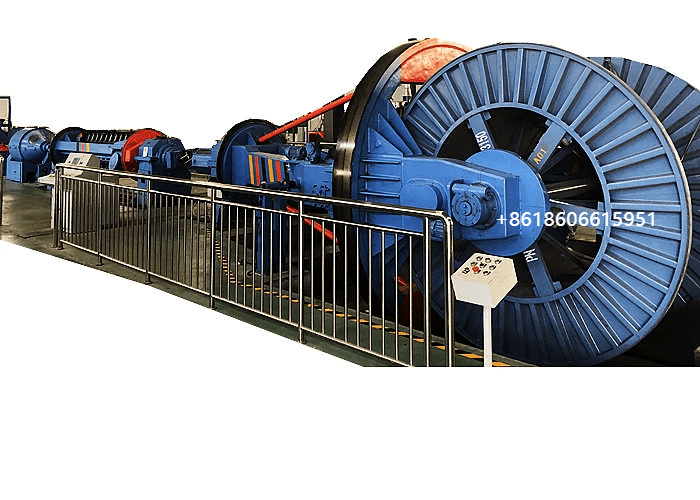

    Cable Drum Twister Machine 4x2000 Pay-off and 3150mm Take-up FROM capstian tech
    Cable Drum Twister Machine 4x2000 Pay-off and 3150mm Take-up

    Cabling O.D.:Φ25~Φ100mm
    Max. Rotating speed of T/U & P/O: 40r/min

    PLC+IHM Siemens

    Reset protection for all hydraulic lifters

  •

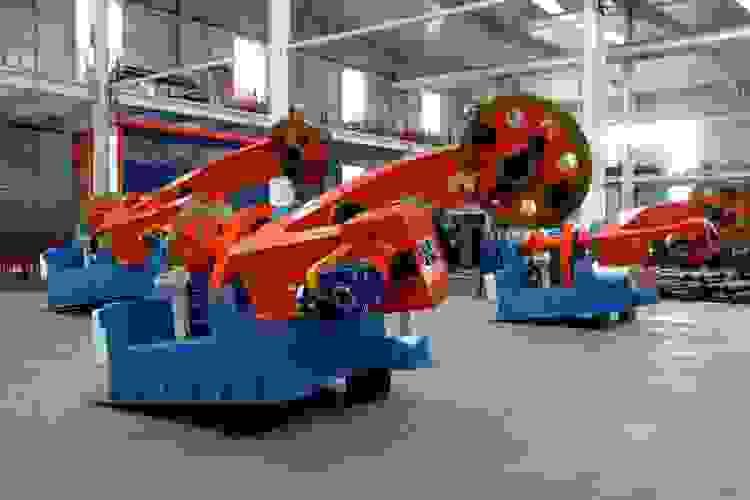

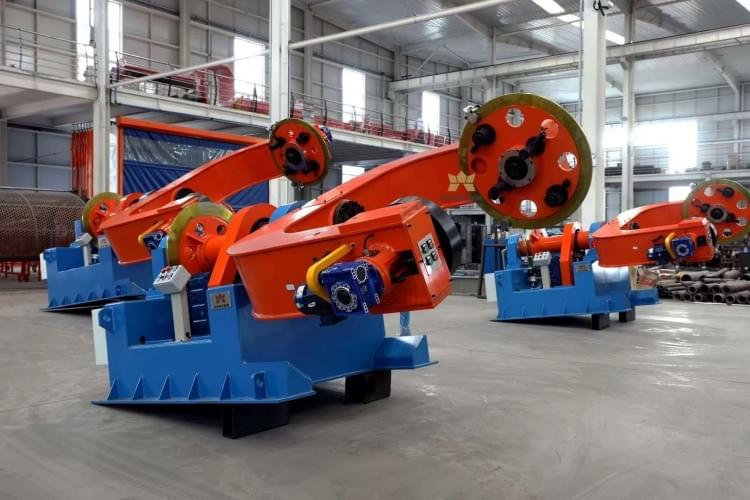

  • Fork Type Rotating Pay-off Stand from CAPSTIAN technology

    PN1250-PN2200 Fork Type Rotating Pay-off Stand

    • Pay off bobbin:PN1600 (user Standard Implementation)
    • Max rotating speed: 40R / min
    • AC variable frequency motor
    • Pay off tension: 10-150kg
    • The pay off frame is a fork cantilever structure and is driven by a separate motor. It can rotate synchronously with the take-up frame, or it can be fixed, or it can be inched manually.
    • Pay off tension control, which can be adjusted arbitrarily under parking and running conditions.
    • The bobbin is clamped, adopts shaftless type, and is driven by a separate motor.
    • The loading bobbins are driven by the manual.
    • Pneumatic braking device is adopted.
    • Each pay off frame is equipped with an operation station, which can control the inching rotation or stop of the pay off frame

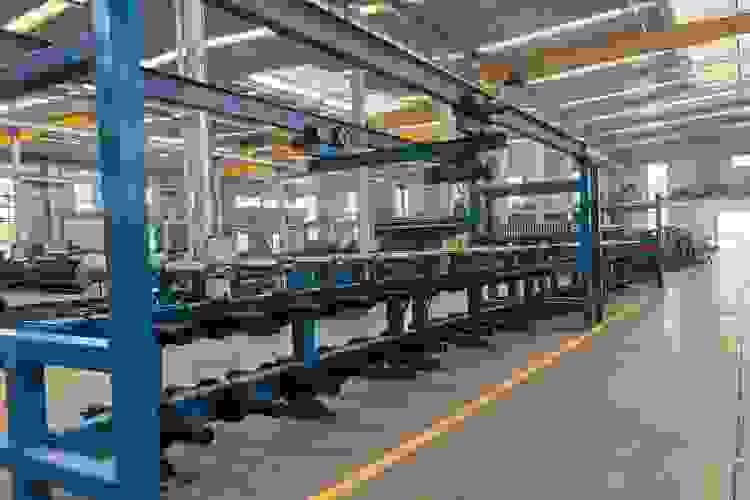

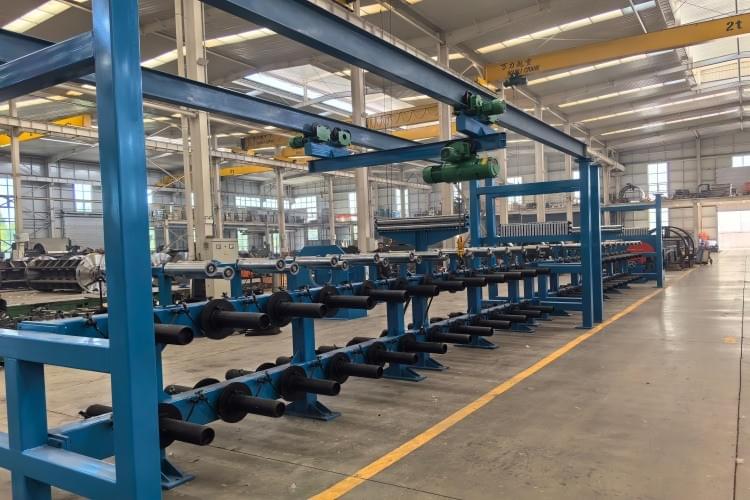

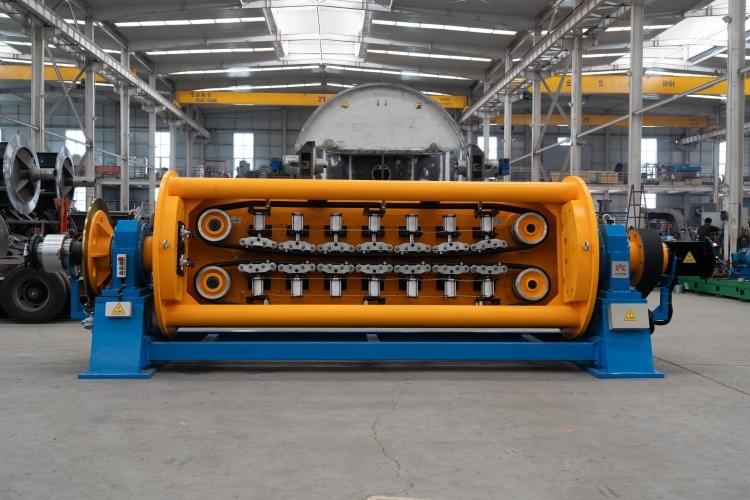

  • Multi head steel wire pay-off stand from CAPSTIAN technology

    Multi head steel wire pay-off stand

    • Pay off rack: 48+ 48 two strand
    • Specification of pay off bobbin: Ф 500
    • Diameter of armored steel wire: Φ 1.5～ Φ 4.0mm
    • Maximum number of armored steel wires: 96
    • The device includes 96 bobbins steel wire paying off frame, conductor column, steel wire straightening device, etc.
    • The pay off racks are respectively on both sides of the equipment center line, and the pay off racks on each side are hung with wire reels on both sides
    • Equipped with single row wire die base, and wire die size: 160*160mm

  • Rotation Pneumatic Caterpillar from CAPSTIAN technology

    Rotation Pneumatic Caterpillar

    • Effective contact length of traction belt: 140mm
    • Traction force: 4000-6000kg
    • Maximum traction line speed: 33m / min
    • Maximum rotating speed: 40R / min
    • Traction motor : AC variable frequency motor
    • The upper and lower multi wedge belts are pulled in the form of pneumatic compression and pneumatic tension. The compression and tension are adjusted by a pneumatic pressure regulating valve respectively.
    • The AC variable frequency motor is driven separately, and the traction speed is stepless adjusted.
    • The traction rotating body and take-up rotating body share a motor and realize synchronous rotation through mechanical transmission.
    • Pneumatic butterfly brake.
    • Electronic meter counting, the meter counting shall be reserved to one decimal place.

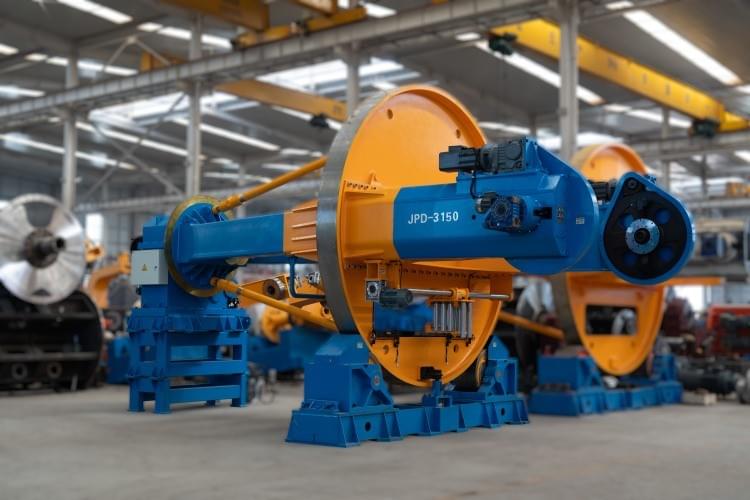

  • Drum Type Take-up and Traverse Line Stand from CAPSTIAN technology

    Drum Type Take-up and Traverse Line Stand

    • Specification of take-up reel: PN1800-3150
    • Max speed: 31-40R / min
    • Cable forming pitch moment: 200-5000mm
    • Rotating motor and Take-up motor: AC variable frequency motor
    • The rotary take-up frame adopts fork type supporting wheel structure, and a separate motor is directly driven by synchronous belt. It has the functions of left-right rotation and parking.
    • The reel is clamped, adopts shaftless type, and is driven by a separate motor.
    • The AC variable frequency motor is used for take-up and controlled by the frequency converter. The maximum tension of take-up can reach 250kg,
    • Pneumatic braking device is adopted.
    • The upper and lower plates adopt hydraulic lifting platform and are equipped with independent hydraulic station


  • Multi Components to Choose for your production

    More components of our drum twister machine for customer' cable and wire.

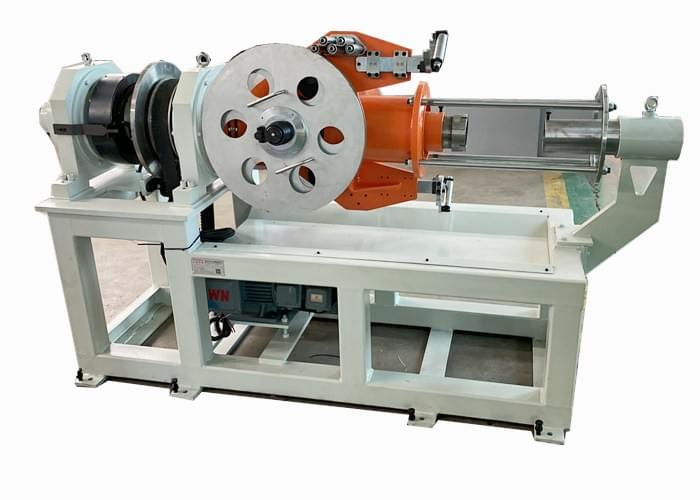

    Portal Take-ups of laying up machine from capstian technology

    Non-metal taping machine

    PLC+touch screen control.

    Max speed 650rpm

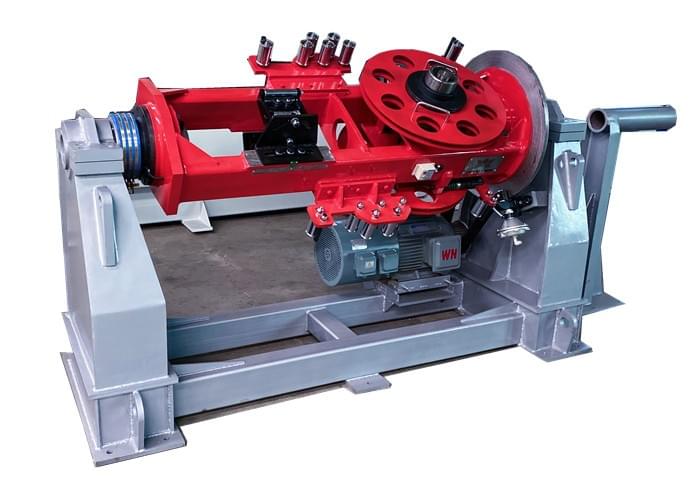

    1+1 Rotation Central Pay-off from capstian technology

    Metal taping machine

    Separate motro driving.

    Max speed 600rpm

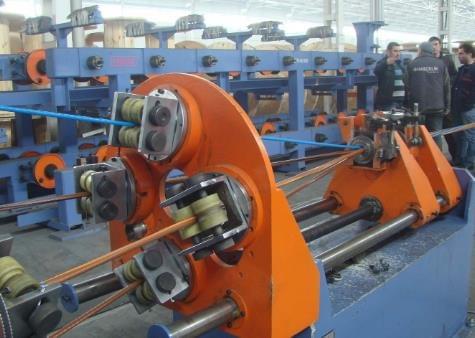

    Pnuematic Caterpillar of laying up machine from capstian technology

    Assembling die holder

    Max cable diameter 150mm.

    Roller type

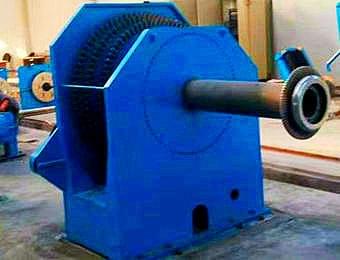

    Mechanical Tension from capstian technology

    Pre-former

    Max 96 head for steel armouing function.

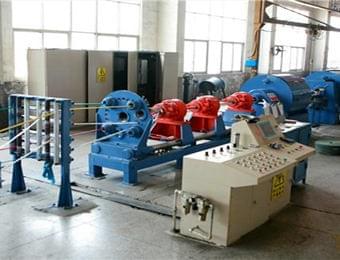

    Double Row Die Holder from capstian technology

    Double Row Die Holder

    The mold base adopts circular split type

  • Advantages of Our Drum Twister laying-up machine?

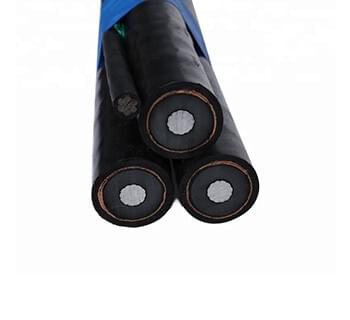

    Metal Rod Drawing of cable production of CAPSTIAN TECH

    Overhead XLPE cable

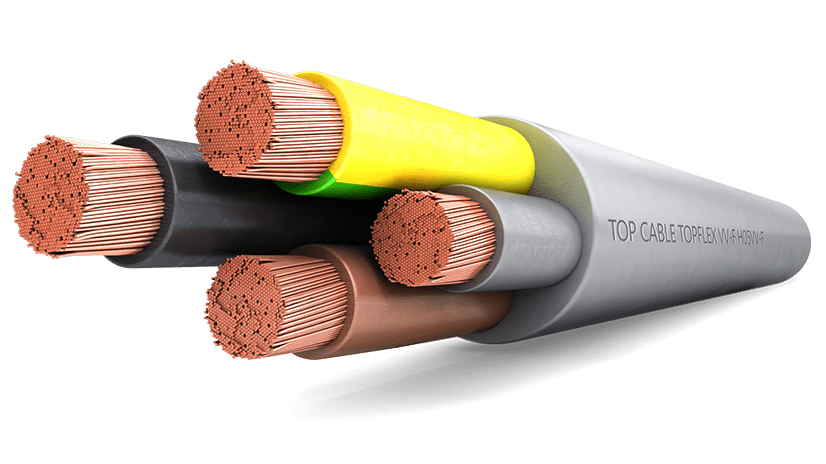

    Extrusion Process of cable production of CAPSTIAN TECH

    Control Cable

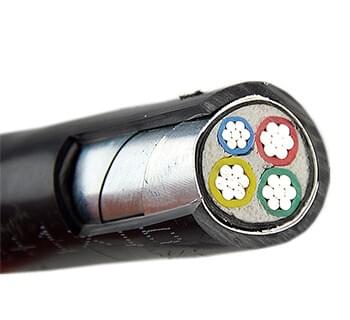

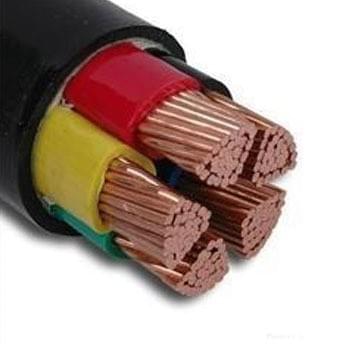

    Extrusion Process of cable production of CAPSTIAN TECH

    Armoured Power Cable

    Extrusion Process of cable production of CAPSTIAN TECH

    Sector Cable

  • More videos of Max Xu' drum type laying-up machine

    Max Xu - Social media. and know more informations.

  • Technical Sheet of Drum Type Laying-up Machine

    product image
    Drum twister JPD-3150 Take-up and 4x2000DIN Pay-off With Sector Collection Device
    product image
    Drum Twisters Machine from 1600 to 5000mm
    product image
    Линия скрутки типа drum-twister HPD2500/3150
    product image
    Cableadoras Drum Twister JPD2500-3150

  • Get the price of drum twister line from Max Xu
