• Automatic Coiling and Packing Machine from ningbo capstian technology

    Automatic Coiling and Packing Machine

    Cable Coiler, Coil Winders, Automatic Coil Winding Machines, Cable Coiler Machine

  • Fully Automatic Coiling and Packing(Wrapping) Machine

    Application:

    The machine is also equipped a meter counts that checks precisely the length on the coil, When the preset length is achieved, cut the wire length a cutting device placed in front of it.

    • Automatic coiling cable from an extrusion line or a pay-off rewinding line.
    • The activating a push button the line starts coiling by ramping up and down and stop at the exact length.
    • During the coiling process, the finished coil can be extracted manually or automatically.
    • PLC+ touch screen control for easy operating system.
    • The Complete line is composed of a single driven pay off that receives the cable to be coiled along with the pay-off, a dancer accumulator regulates the speed and ramping phases of the pay off.
    • The winder is powered by A/C motor frequency drives.

    Main feature:

    • Can work with extruder directly or pay off directly.
    • After coiling can pack films and stick the label.
    • This machine with automatic fault monitoring function, will give alarm to operators.
    • This machine capacity is 7 times of manual coiling and packing.
    • Adopting servo motor traversing system, can make coils with goods surface.
    • PLC can memorize 99 kinds of different wires specification, when you changing the wire size, only read the data in the PLC.
    • Not need input again, can produce immediately

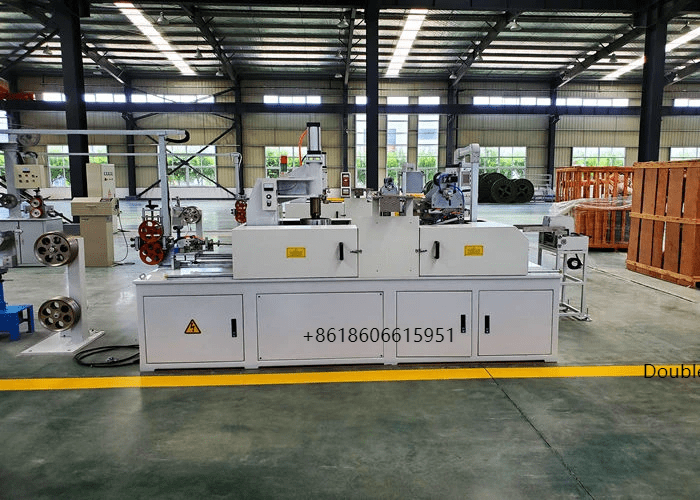

  • VC1040 Automatic PLC Coiling and Packing Integrated Machine from CAPSTIAN technology
    VC1040 Automatic PLC Coiling and Packing Integrated Machine

    Coiling head performance:
    • Applicable line type: Φ3- 8mm wire (bv1.5-6) mm², BVR2. 5—10mm²)
    • Design speed of coiling head: 900 RPM max
    • Coil size: outer diameter Φ 400mmmax * height 40-100mm;
    Packing machine performance::
    • Weight of packaged coil: max 35kg.
    • Size of PVC / PE / PP adhesive film: 0.05mm-0.07mm thick*40mm-50mm width
    • It can be supplied by the paying off machine or directly connected to the production line of the extruder.
    • The microcomputer memory can store 99 different coil specifications. .
    • The secondary machine has the function of automatic error detection.

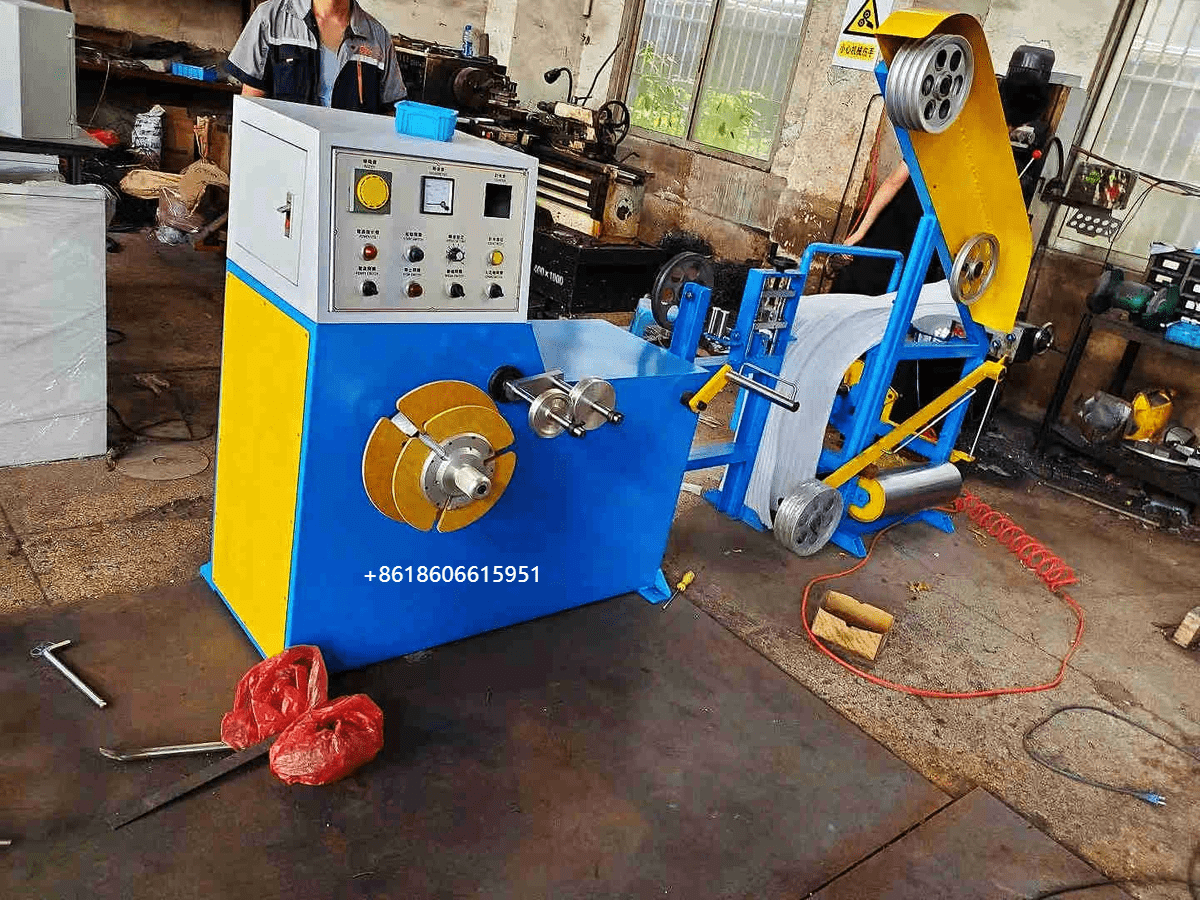

  • Small Cross-section Coiling Machine for 0.5-6.0sqmme from CAPSTIAN technology

    Small Cross-section Coiling Machine for 0.5-6.0sqmm

    • Application: Insulated core 0.5-6.0mm2, OD max 6mm.
    • Pay-off type: Passive type φ630mmx450mmx80mm
    • Traversing type: Automatic traversing 3HP motor
    • Motor rotation: 0-350rpm
    • Coils size OD: φ300mm,Inner dia.120mm or customized, High 40-100mm (adjustable)
    • Coiling motor: 1.5KW/3P/380V
    • Coil ties Number: 3
    • Tension control: belt brake (adjustable)
    • Bobbin lifting: by manual
    • Bobbin lock: by manual
    • Brake: by manual

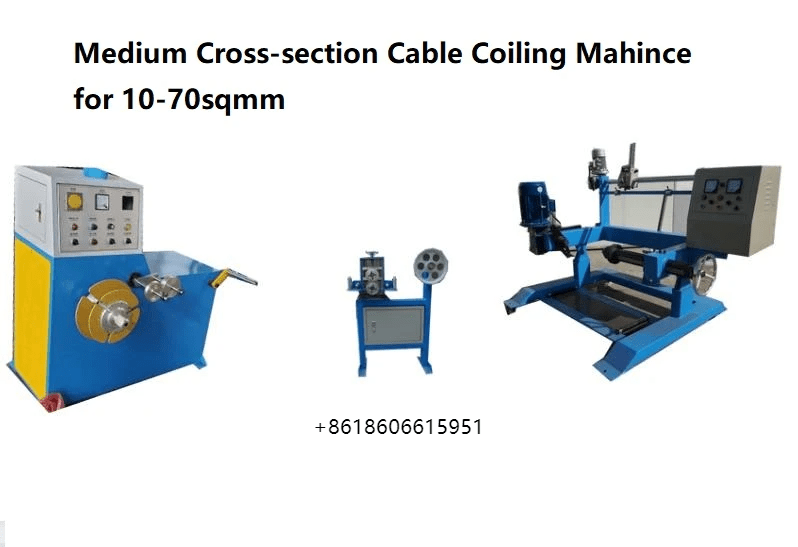

  • Semi-automatic coiling machine for 10-75sqmm from CAPSTIAN technology

    Semi-automatic coiling machine for 10-75sqmm

    • Application:3.5mm-11.0mm, 10mm2-75mm2
    • Pay-off type:1000-1250mm
    • Traversing type: Automatic traversing
    • Motor rotation: 0-350rpm
    • Coils size OD: φ550mm,Inner dia.200mm or customized High 50-150mm (adjustable)
    • Coiling motor: 5HP/3P/380V
    • Coil ties Number:3
    • Tension control: 10KG magnetic powder (adjustable)
    • Bobbin lifting: : 2HP motor with reducer
    • Bobbin lock: by pneumatic
    • Brake: pneumatic with disc
    • Linear speed: 100m/min

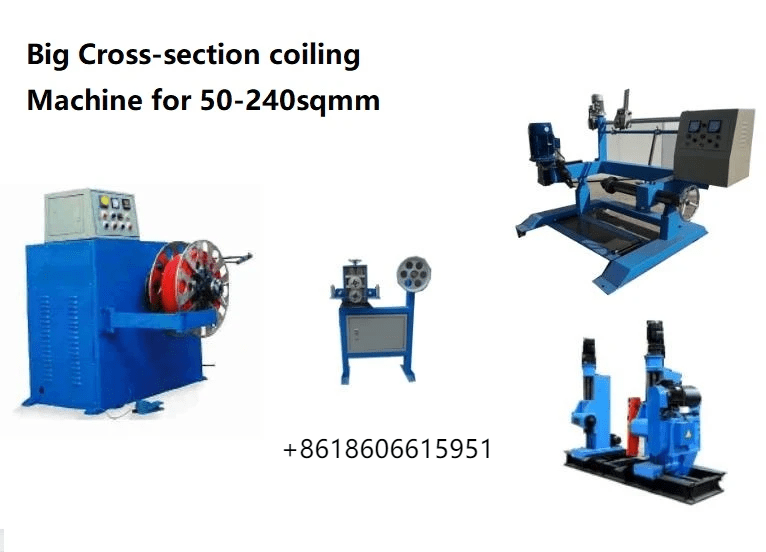

  • Big Cross-section Coiling Machine for 50-240sqmm from CAPSTIAN technology

    Big Cross-section Coiling Machine for 50-240sqmm

    • Application: upto 30mm
    • Pay-off type:1250-2500mm
    • Traversing type: Automatic traversing
    • Motor rotation: 0-150rpm
    • Coils size OD: φ700mm,Inner dia.400mm
    • Coiling motor: 15HP/3P/380V
    • Coil ties Number:3
    • Tension control: 10KG magnetic powder (adjustable)
    • Bobbin lifting: : 3HP motor with reducer
    • Bobbin lock: by pneumatic
    • Brake: pneumatic with disc
    • Linear speed: 70m/min

  • More considerate services to facilitate customers' production and operation

    Customized parts according to customer needs for coiling machine

    PLC with button control  from capstian technology

    PLC with button control

    Multi language set from capstian technology

    Multi language set

    Connect with extruder from capstian technology

    Connect with extruder

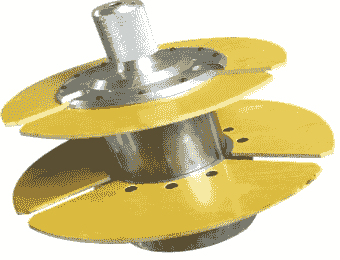

    Customized coiling head size from capstian technology

    Customized coiling head size
