  • Professional Pay-off&Take-up Stand

    Application:

    • BEYDE offers a wide range of pay-offs and take-ups to support any application in the production of power cable, steel wire rope, telecommunication cables or any environment where continuous production is desired.
    • Like end shaft, granty&portal type, shaftless type, column type, single bobbin, dual bobbins, multi bobbins pay-off and take-up stand.
    • Ease of use, reliability and robustness are the cornerstones in which our pay-offs and take-ups are designed and tested. With reel ranges from 300mm to 4000mm, weights up to 40,000 pounds and a variety of options and features Bartell offers the best solutions to ensure the consistent production of quality products.
    • The tension compensators are delivered as an integrated part of the take-ups.
    • The take-off can be designed in two versions:
    • with a drive system (active) with motorize regulated tension
    •  without drive system, with a manually regulated breaking device
  • Main Parameter of End shaft(Column Type) Pay-off and Take-up Stand from CAPSTIAN technology

    Main Parameter of End shaft(Column Type) Pay-off and Take-up Stand

    • Applicable bobbin size rang : Ø 630- Ø 2500
    • Applicable reel width : 600-1900mm
    • Tip diameter : Ø 40-80/ Ø 125
    • Max load capacity : 4-12T
    • Tension form : Mechanical friction
    • The bottom of the take-up stand is welded with high-quality steel plate and channel steel, and the movable columns on the left and right sides are bent and welded with high-quality steel plate. The two columns are respectively fixed with the left and right main and auxiliary brackets, and the end of the main bracket is equipped with a tension adjusting device.
    • The pay-off and take-up stand can meet the requirements respectively reel clamping, loosening, rising and falling actions. Ensure the reliable positioning of the reel.
    • The tension is generated by the friction between the clamp tensioner and the plane friction disc, and the tension is manually adjustable

  •









  • Parameter of Granty&Portal Type Pay-off and Take-up Stand from CAPSTIAN technology
    Parameter of Granty&Portal Type Pay-off and Take-up Stand

    • Applicable bobbin size range : 800-3150mm
    • Maxi load capacity : 4-20T
    • Tip diameter : Ø 80/125mm
    • Maximum take-up speed : 7-85m/min
    • Wire diameter range : Ø 4-140mm
    • Winding motor power : 5.5-7.5KW(AC)
    • Variable speed series of take-up box : Level 3
    • Take-up form : Translation reciprocating center take-up
    • Mechanical structure: double column door type telescopic jacking shaft, the wire reel is suspended on the lifting and sliding column columns on both sides.
    • Bobbin lifting: both sides of reel are supported by columns The reel lifting is driven by two groups of reduction motors
    • Equipment structure and features: the whole machine is composed of two ground beams with rollers, two columns, sleeve telescopic beams and electrical system.
    • The whole machine is coordinated and controlled by a separate programmable controller (PLC) and HMI(color touch screen)

  •









  • Multi Type to Choose for your production

    More type of our pay-off and take-up machine for customers

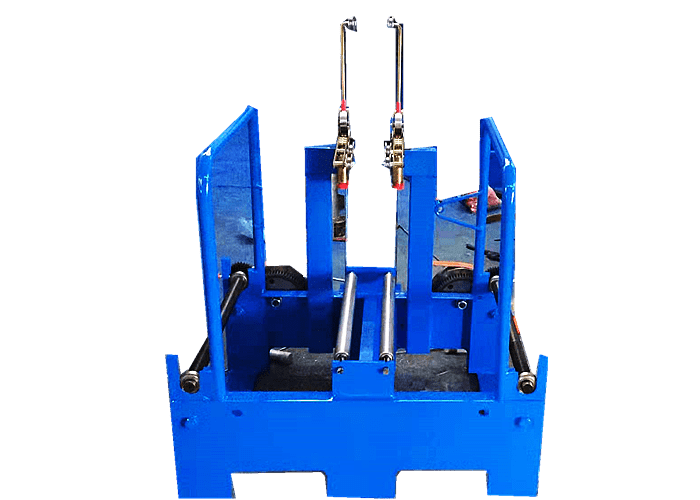

    Japanese Dual Bobbins Pay-off strand: Pay-off wire Stand from capstian technology

    Japanese Dual Bobbins Pay-off strand: Pay-off wire Stand

    • Bobbin size range:PN400-PN630,PN630-PN800,
    • Soft wire:∅0.8-∅6mm, hard wire: 2.5mm2
    • Pay-off tension:swing bar tension
    • Clamping :Manual clamping

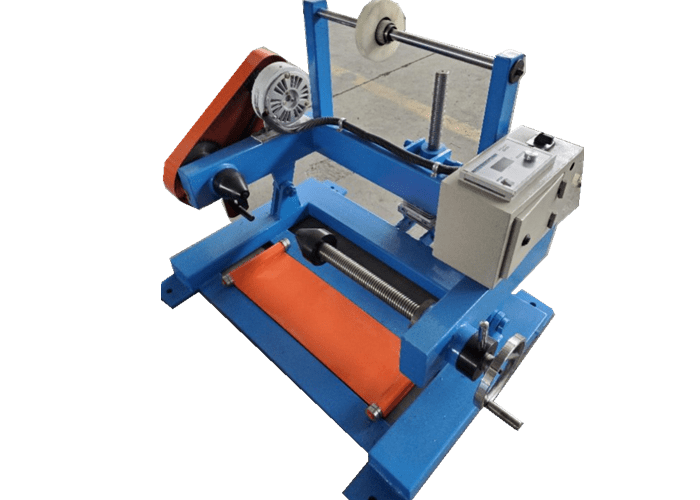

    630mm No Shaft Single Type Take-up Stand from capstian technology

    630mm No Shaft Single Type Take-up Stand

    • Model: shaftless single wire input
    • Bobbin size range: PND400mm-PND630mm
    • Electric lifting, manual clamping,
    • 5kg magnetic powder tension control adjustment

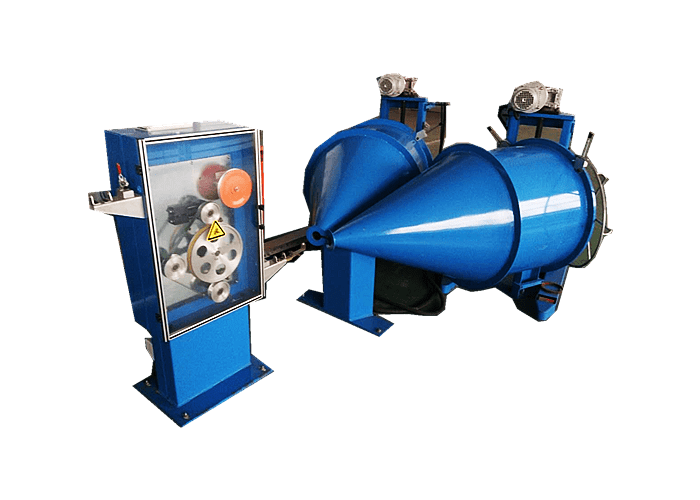

    Dual Cone Type Fry Pay-off Stand  from capstian technology

    Dual Cone Type Fry Pay-off Stand

    • Load capactiry : 500 kg
    • Wire Diameter ∅0.6 ~ ∅3.0
    • Description:
    • Dual cone wire pay off, allowing a non-stop bobbin change for high speed

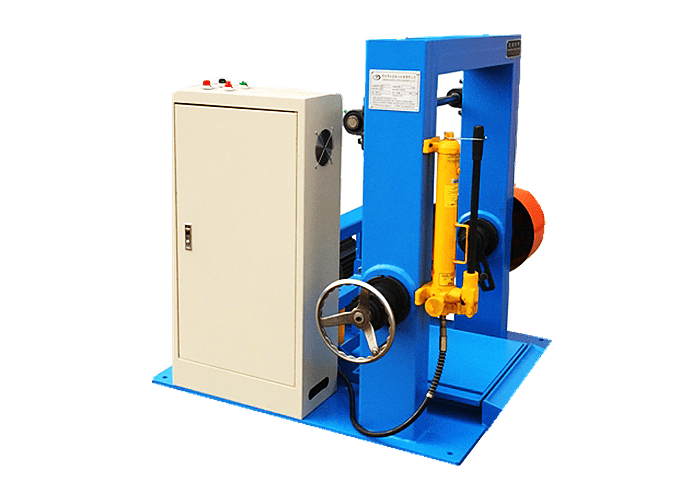

    630mm Gate&Door type Active pay-off Stand  from capstian technology

    630mm Gate&Door type Active pay-off Stand

    • Bobbin size:PND500-PND630
    • Wire Diameter Range: soft wire Φ1.0-Φ5.0mm, hard wire: 1.5mm2
    • Pay-off Power:5.5KW
    • Clamping: manual
    • Lift bobbin: hydraulic pressure

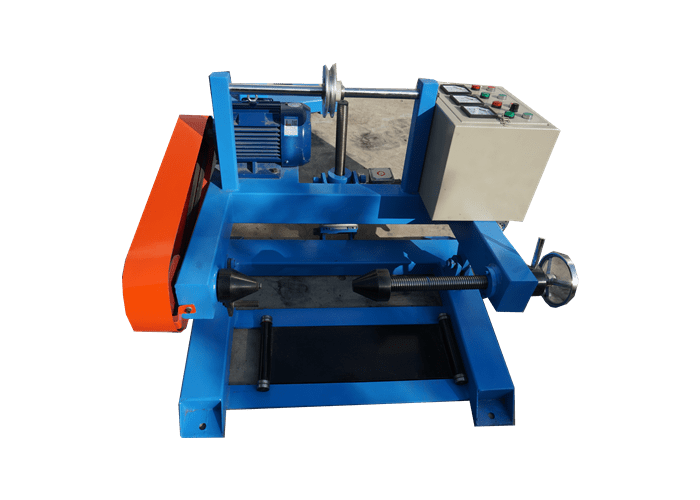

    630mm Active Motorized pay-off stand from capstian technology

    630mm Active Motorized pay-off stand

    • Machine type: Shaftless
    • Bobbin size range:PND400-PND630;
    • Lifting Method: AC Geared motor +Screw lift;
    • Clamping type: pneumatic;
    • Power: 7.5KW AC variable frequency motor
    • Tension: magnetic powder tension

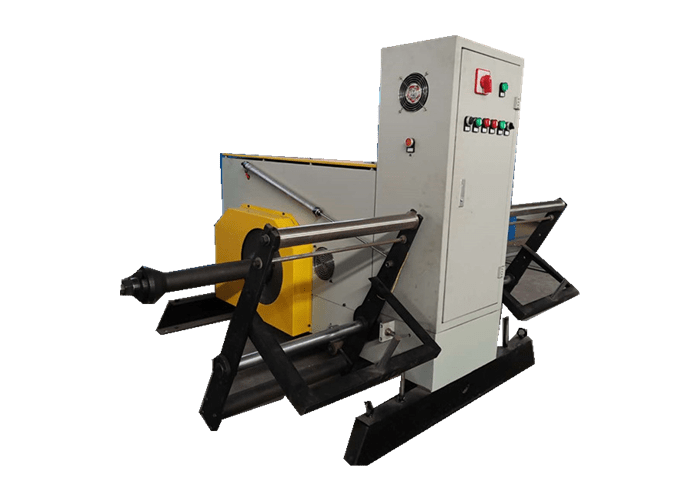

    630mm Active Dual bobbins Pay-off Stand from capstian technology

    630mm Active Dual bobbins Pay-off Stand

    • Bobbin size:PND630mm
    • Wire Diameter Range:Φ0.08-Φ0.32mm
    • Max Speed Of Take-up:300m/min
    • Pay-off Power:1.5KW-6P
    • Number Of Lines:Max 13 wire
    • Pay-off Form: Dual Shaft Single with Layer tension balance mechanism

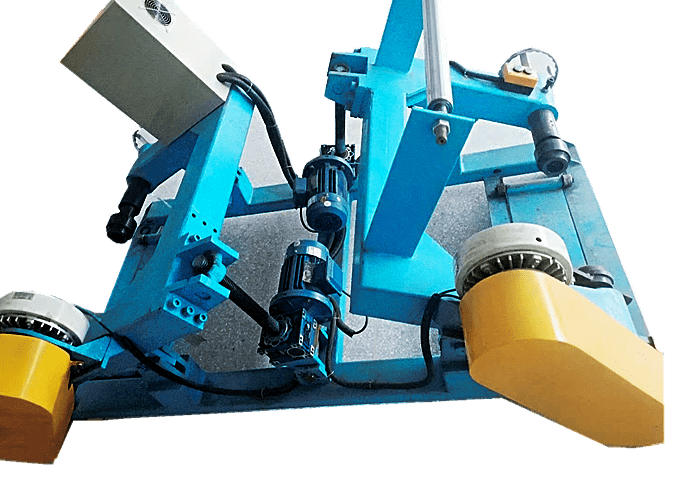

    630mm No Shaft Type Dual Bobbin Take-up and Traverse Line Stand from capstian technology

    630mm No Shaft Type Dual Bobbin Take-up and Traverse Line Stand

    • Bobbin size: PN400-PN630
    • Electric clamping and lift
    • Max take-up speed: 300m/min
    • Take up motor: 1.5 AC motor
    • 5kg magnetic powder tension control adjustment

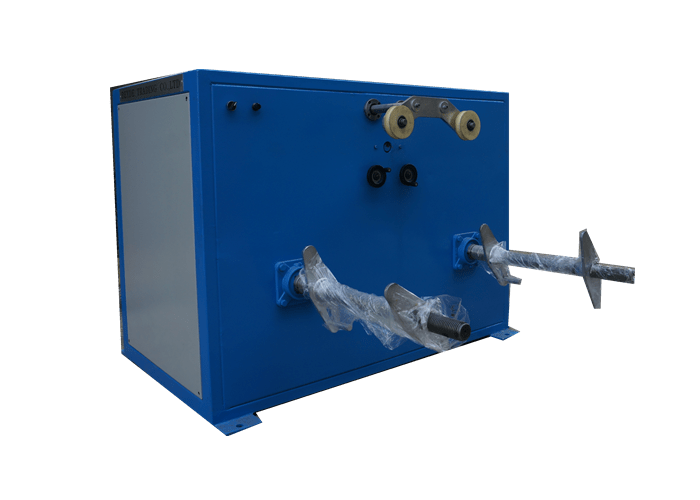

    630mm Dual Bobbin Take-up and Traverse Line Stand from capstian technology

    630mm Dual Bobbin Take-up and Traverse Line Stand

    • Take-up bobbin size: PND400-PND630
    • Max load capacity: 0.8t
    • Max diameter of cable: Φ15mm
    • Max take-up speed: 220m/min
    • Take up motor: 40nM torque motor

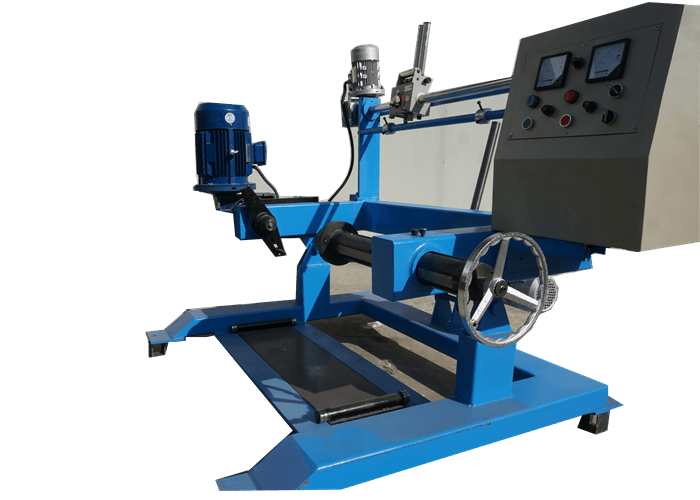

    630mm No Shaft Type Single Bobbin Take-up and Traverse Line Stand from capstian technology

    630mm No Shaft Type Single Bobbin Take-up and Traverse Line Stand

    • Bobbin size:PND500-PND630
    • Manual clamping
    • Max take-up speed: 220m/min
    • Take up motor: 40nM torque motor

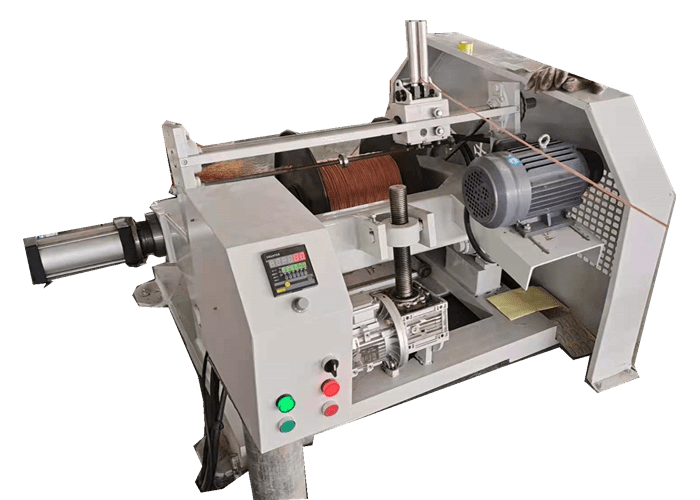

    630mm No Shaft Type Pay-off Stand from capstian technology

    630mm No Shaft Type Pay-off Stand

    • Model: shaftless single wire input
    • Bobbin size range: PND400-PND630
    • Pneumatic clamping, pneumatic tension

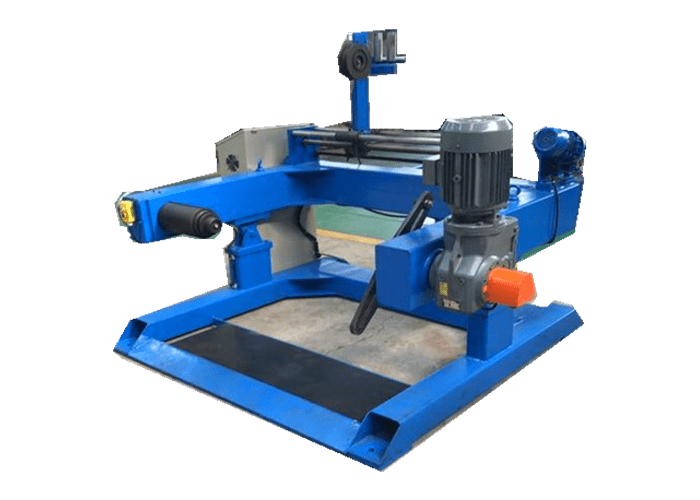

    1250mm No Shaft Type Single Bobbin Take-up and Traverse Line Stand from capstian technology

    1250mm No Shaft Type Single Bobbin Take-up and Traverse Line Stand

    • Bobbin size: PN1000-PN1250
    • Electric clamping and lift
    • Max take-up speed: 220m/min
    • Take up motor: 1.5 AC motor
  • Parameter of Granty&Portal Type Pay-off and Take-up Stand from CAPSTIAN technology
    Rewinding Machines for customized

    1. Portal type rewinding machine:

    1).PN1600-2500 portal pay-off rack

    2).Spark tester

    3).Meter counter

    4).PN1600-2500 portal take-up and traverse line rack

    5).PLC Control system



    2. Column type rewinding machine:

    1).PN800-1600 end shaft pay-off rack
    2).Caterpillar with meter counter
    3).PN800-1600 end shaft take-up and traverse line rack
    4).PLC Control system

    3. Shaftless type rewinding machine:
    1).PND400-630 single bobbins pay-off rack
    2).Tension rack
    3).Traction and meter counter
    4).PN500-250 no shaft take-up and traverse line rack
