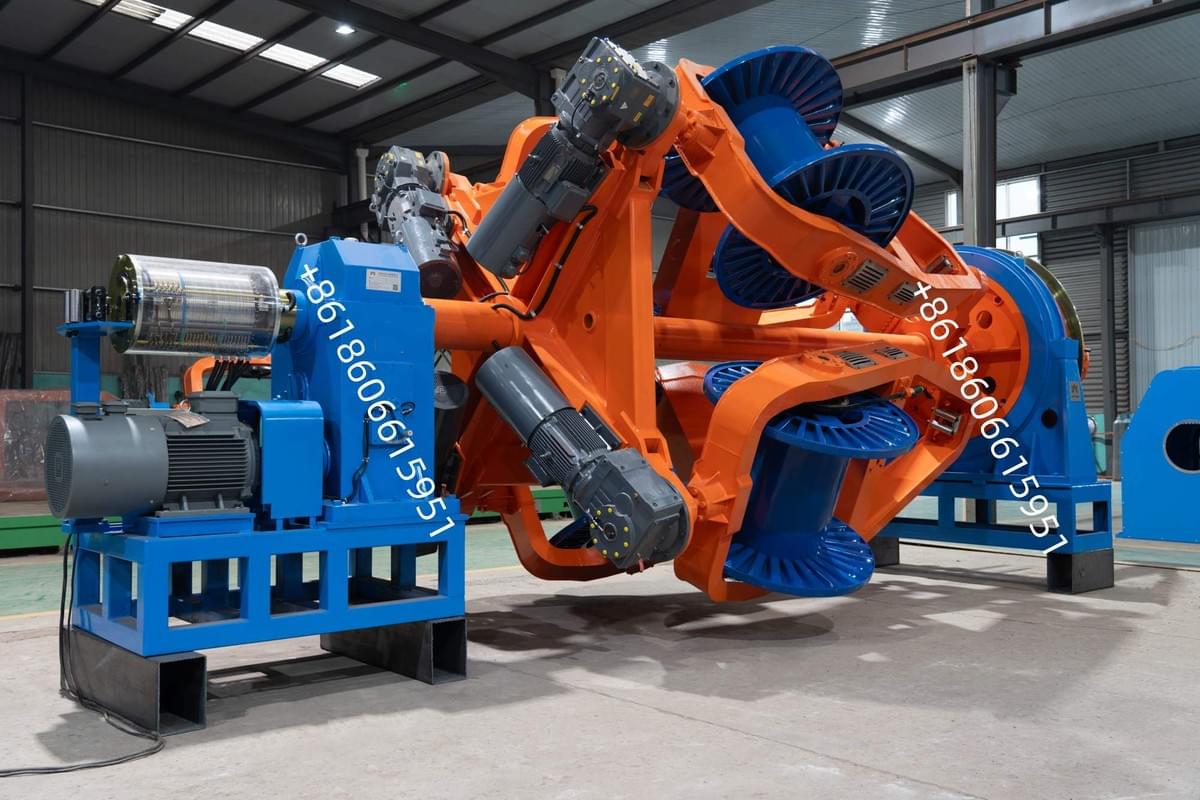

4.1 Ø1250mm Planetary Rotation pay-off:4 bobbins
Pay-off bobbin size:  PN1250
Max Load Capacity 4T
Positioning speed of loading reel: 15r/min
Cage rotation max speed: 100r/min
Cage Rotating motor power 45KW (AC variable frequency motor)
Reel frame rotating motor power 15KW (AC variable frequency motor) 4 units
Loading bobbin method: Side and electric clamping
The 4 reel cage uses dual bearing supports (front and rear). The input end uses roller bearing, while the output end uses roller bearing. The main shaft is made of high-quality seamless steel tube, annealed, and driven by a separate AC servo motor with slow-speed positioning and frequency control functions, It can rotate synchronously with the main cage or fix. Achieve for twisting round wires without back twisting, and for no back twisting for sector cable
All reel cradle use electric clamping and releasing bobbin, with a safety function. electric pre-twisting without stopping the machine..
All 4 reel cradle use separate motor driven, and the tension is set on the touch screen of the main control panel.
Pneumatic brake.
Equipped 12 filling rope pay-off rod. Specification: Ø300xØ30x300mm

4.2 Double row closing wire die holder:
There are two die holders for closing wires.
The distance is adjusted by moving the threaded rod.

4.3 Ø600x2 Tangential non-metallic taping unit: 2 set
Disc diameter × Hole diameter × Width: Ø 600 × Ø 80 × (15–80) mm
Number of discs: 2 discs
Max speed of winding head: 750 r/min
Taping pitch: Continuously adjustable
Taping motor: 11kW (AC frequency conversion motor)
Taping tension: Mechanical tension
Taping material: Polyester tape, non-woven fabric, aluminum-plastic composite tape, copper,etc.
The taping head adopts a Tangential structure, with independent AC servo motor drive and frequency conversion control. It has left and right rotation functions.
The tension is controlled by Mechanical tension, allowing for online adjustment without stopping the machine.
Pneumatic brake system
Automatic stop functions for tape break and end of tape.
The protective cover uses an axial sliding door structure with built-in lighting and an automatic stop function when the door is opened.

4.4 2000kg Rotation pneumatic Caterpillar with meter counter
Applicable cable OD: Ø10-Ø80mm
Max pulling force: 2000kg
Max rotation speed: 50m/min
Max rotation speed: 85r/min
Effective contact length of the pulling belt: 2200mm
Width of the pulling belt: 120mm
Pulling motor: 2x11KW (AC frequency conversion motor)
Pneumatic clamping and tensioning of the upper and lower flat belts; clamping and tensioning are controlled by separate pneumatic pressure regulators.
AC servo motor for independent drive, stepless speed control
The caterpillar and take-up use same one motor, with synchronous rotation achieved through mechanical transmission.
Pneumatic butterfly brake.
Electronic meter counter, accuracy error ≤5‰.
Equipped with a 40-inch LED dual-sided display screen

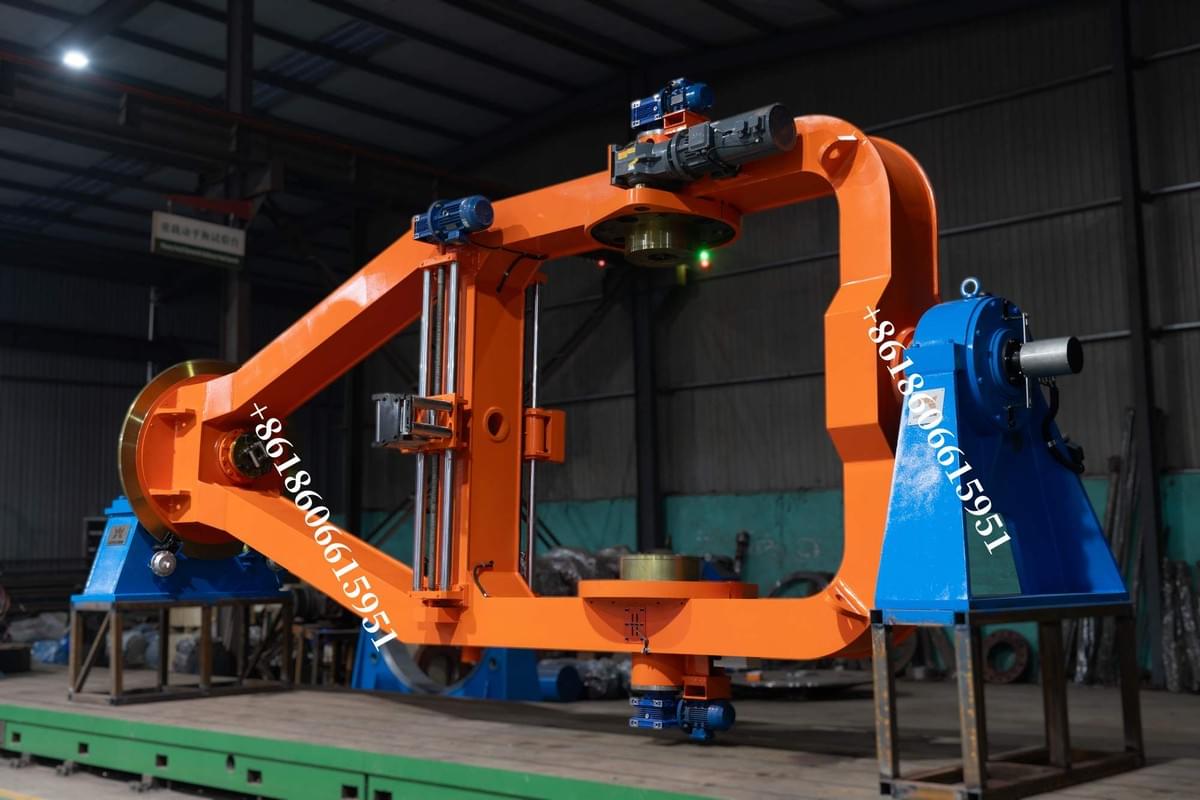

4.5  Ø 2000 cradle type rotation take-up and traverse
Take-up bobbin: PN2000, PN1600
Max rotational speed: 85 r/min
Max take-up linear speed: 50 m/min
Cabling pitch: 200–2000 mm
Max load capacity: 8 t
Traverse pitch: 10–80 mm
Rotating motor of cradle take-up: 45 kW (AC frequency converter motor)
Traverse motor: 2 × 4.0 kW (AC frequency converter motor)The rotating take-up uses a cradle-type double-support structure, driven by a separate motor via a timing belt. It has left/right rotation and stop functions.
The reel clamping mechanism is shaftless and driven by a separate motor.
The take-up system uses an AC frequency converter motor with frequency converter control. The max tension can reach 150 kg, and can be set, modified, and displayed on the touch screen. Reeling can be operated in forward and reverse directions.
The traverse uses an AC servo motor with frequency converter control. The pitch can be set, modified, and displayed on the touch screen. The laying direction automatically switches, and rapid movement is possible. Left/right direction and jogging functions can be set on the touch screen.
Pneumatic brake system.
Overhead crane used for loading/unloading reels.
Safety fencing installed around the equipment.

4.6 Electrical control system
The machine's power supply is: three-phase, five-wire system, 380V ±10% 50Hz, with a single-phase control voltage of 220V.
The machine's overall control system uses a field bus network, with a PLC and touchscreen coordinating the operation of all motors.
Various process parameters can be set, modified, and displayed on the touchscreen.
The machine has the following protection mechanisms:
Fault alarm for each speed control device;
Over-travel protection for the conveyor belt;
Safety protection for the protective cover;
Low pressure protection.
The equipment is equipped with a remote communication module, providing remote technic.
