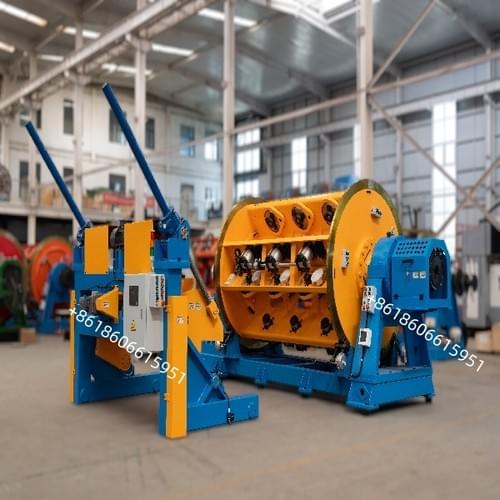

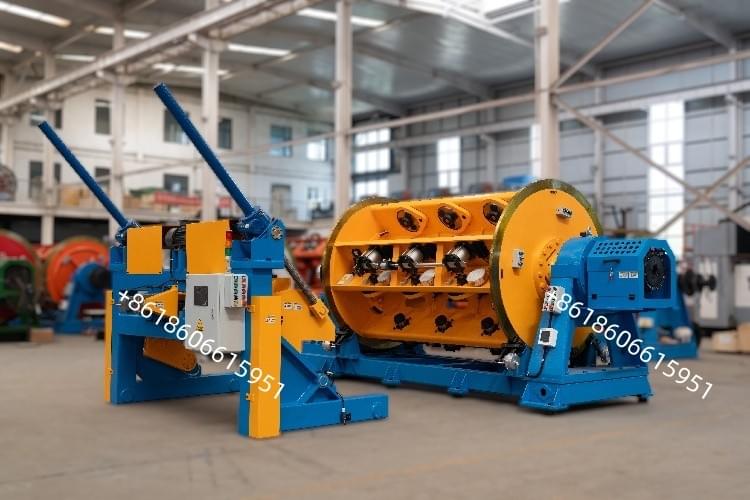

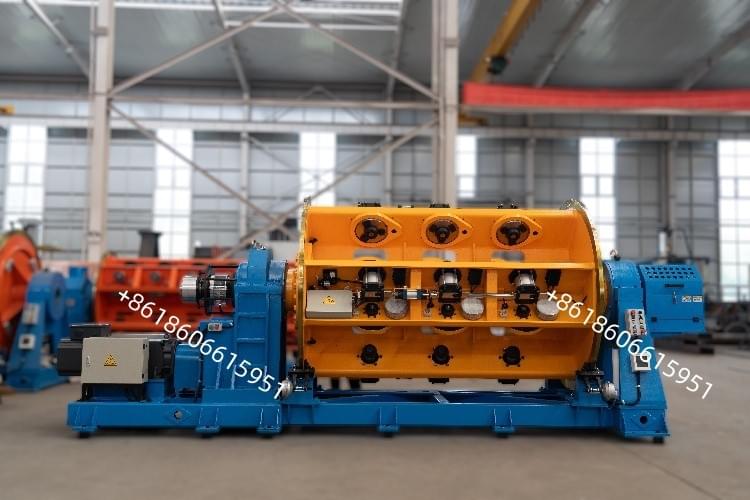

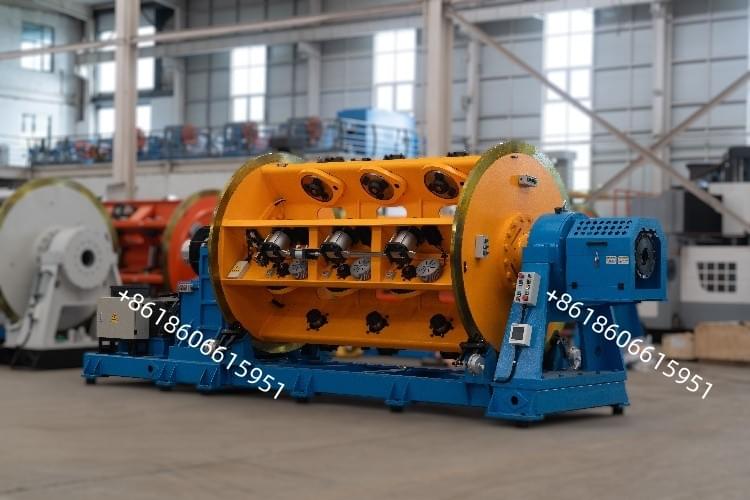

Wire Cable Rigid Frame Stranding Machine with Side Loading Bobbin System

The rigid cage strander is the machine par excellence for manufacturing conductors for power cables. This the strander combines quality, productivity and flexibility compared to other stranding methods.
Our series is built under the BEYDE brand, a world leader in rotating machines for energy cables which has supplied more than 250 rigid cage stranders to the top energy cable producers.

The rigid cage stranding and screening machine allows for the production of conductors used in aerial cables, low/medium/ high voltage cables, submarine cables, wind power cables, Milliken segments, ACRS cables and screening.

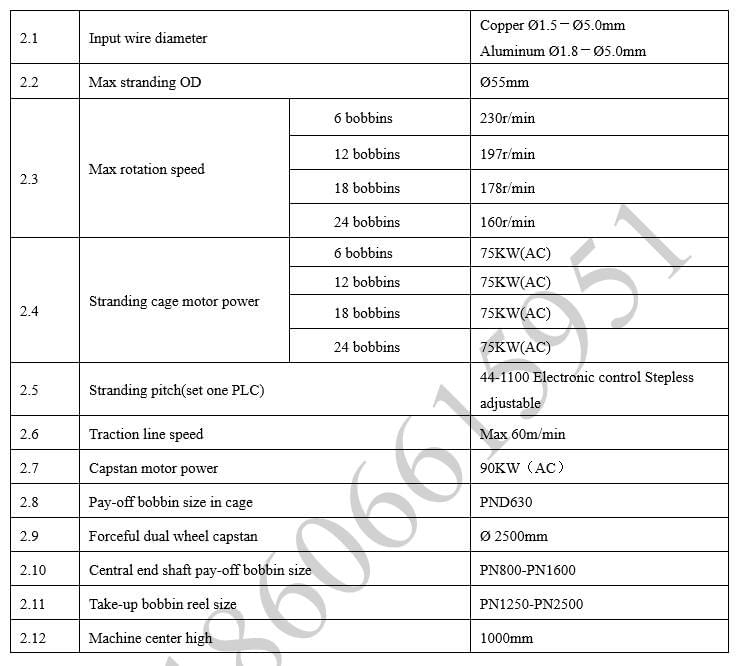

6+12+18+24 bobbin stranding cage:

•  Adapt bobbin size: PND630
• Max rotating speed of stranding cage:
• 6 bobbins: 230r/min
• 12 bobbins: 197r/min
• 18 bobbins : 178r/min
• 24 bobbins : 160r/min
• Stranding cage motor power:
• 6 bobbins : 75kw (AC)
• 12 bobbins : 75kw (AC)
• 18 bobbins : 75kw (AC)
• 24 bobbins : 75kw (AC)
• Pitch range: Stepless adjustable
• Stranding cage drive form: direct-connected independent motor drive
• Stranding cage structure: integrated
• Tension form of pay-off in cage: hysteresis tension
• Hardness of wire reel tightening pintle: HRC60
• Lubrication method of Stranding cage reducer: oil pump spray lubrication
• Design principle: Each stranding body is driven and operated by its own separate motor. The forward rotation, reverse rotation, neutral gear, start, stop, emergency stop and other operation settings of the twisting cage are all controlled by the electrical system
• Structural form: Each section of the stranding cage is an integrated 4-part structure,
• Manufacturing process: The whole frame after welding is annealed at high temperature in the annealing furnace. After 72 hours free cooling to natural temperature, The dynamic balance experiment.
• Wire breakage monitoring: Adopting DXJ fully automatic wire breakage detection system, the electrical switch output is precise and reliable. It can stop and brake in a timely manner when the wire is broken or used up, and can prompt on the human-machine operation interface.

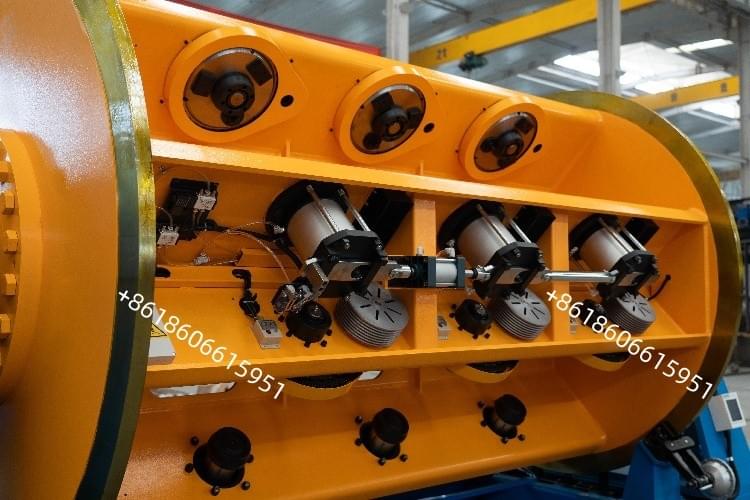

• After centralized loading bobbin system, the pneumatic pin is used for clamping. After the wire coil is tightened, a separate locking cylinder drives the mechanical stop device to lock the ejector pin. And the locking status is monitored by the electrical detection device, and the host cannot be started in an unlocked state.
• The hysteresis tensioner is used to provide the pay-off tension in the cage. The working principle of the hysteresis tensioner is that the tension controller is controlled by the PLC to output a constant tension (decreasing) from full to empty, so that the pay-off tension is uniform and stable. The tension can be fine-tuned through the human-machine interface..
• Braking form: The main cage brake adopts a disc air press brake to reduce the impact of emergency stop inertia on the transmission components.
• Each section of the cage is equipped with an independent air storage tank to ensure air supply. Simultaneously provide brake air supply for unexpected power outages and other situations.
• The front operating position of each section of the cage is equipped with control buttons such as emergency stop, jog, disconnection control selection, positioning, up and down panels, and 220V power sockets for easy operation.The entire machine is operated by a color touch screen with a human-machine interface, and is coordinated and managed by a programmable controller PLC
• U-shaped electric opening and closing protective cover. The protective cover has the function of opening and stopping the machine, and is interlocked with the start button of the whole machine.

• The power supply: three-phase, five wire system: 380V (± 10%) 60Hz, total 450KW
• Alarm and fault information can be viewed on the touch screen, with alarm and process data storage capabilities. Historical operation information can be set to require administrative privileges for deletion.
• Operating System: Various parameters during the production process, such as pitch, production speed, and current operating status, can be viewed and modified in real time.
• A reserved Ethernet port is equipped with a remote communication module, providing remote technical service support (customer-provided SIM card or WiFi signal).
• The unit utilizes a PLC for centralized and coordinated control. A touchscreen human-machine interface is used for operation, making operation simple and convenient.
•  This machine is equipped with the following protection features:
• AC motor driver fault alarm
• Wire take-up overload protection
• Air pressure undervoltage protection
• Wire break protection

Bearing brand:（NSK）
Low voltage appliance brand:（SCHNEIDER）
Brand of pneumatic component:（AIRTAC）
Brand of main drive motor    :（ZMAX）
Brand of take-up motor:（ZMAX）
Brand of inverter    :(INOVANCE)
Touch screen:（SIEMENS 12 inch）
PLC    :（SIEMENS 1200）
Bolt grade:    8.8 class

Air pressure: 0.6MPa
Air volume: 1.0m ³/ min
The compressed air shall be dry and free of impurities and dust.
Equipment Noise ≤85dB
Ambient Temperature -5-40°C
Ambient Humidity: Relative humidity not exceeding 85% (at 20°C ±5°C)
