JLK-630/61 Wire Drum Type Stranding Machine

1.Application: This machine is mainly used to produce large section and large length steel cored aluminum strand and aluminum alloy wire; It can also be used for pressing of copper round and aluminum sector conductor.

2. Main technical parameter:

Input wire diameter：Copper Ø 1.5－Ø 5.0mm
Aluminum Ø 1.8－Ø 5.0mm
Max stranding OD：Ø 45mm
Max rotation speed：6 bobbins    197r/min(
12bobbins：178r/min(
18 bobbins：157r/min
24 bobbins：133r/min
Stranding cage motor power：6 bobbins    75KW(AC)
12 bobbins：75KW(AC)
18 bobbins：75KW(AC)
24 bobbins：75KW(AC)
Stranding pitch(set one PLC)：350-1000mm Stepless adjustable
Traction line speed：Max 40m/min
Capstan motor power：90KW（AC）
Pay-off bobbin size in cage：PND630
Forceful dual wheel capstan：Ø 2000mm
Central pay-off bobbin size：PND500-PND630
Take-up bobbin reel size：PN1000-PN2000
Machine center high：1000mm

3.Main components:

Ø630 Central Pay-off stand
Guide wire stand
6.12.18.24 bobbins stranding cage
Close wire die holder
Compact head
Mechanic & Electrical Meter counter
Ø 2000 Powerful double wheel capstan
Ø 200 Column type take-up with traverse stand
Electric control cabinet
Safety protection push and pull cover
Loading bobbin trolley

4. Main Cage describtion

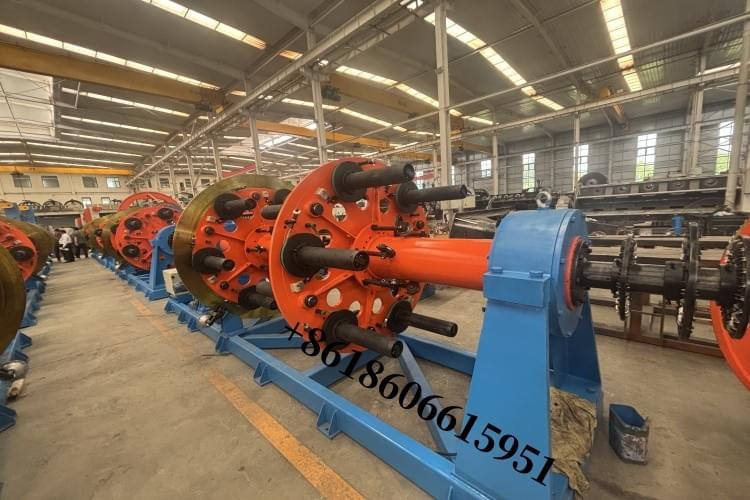

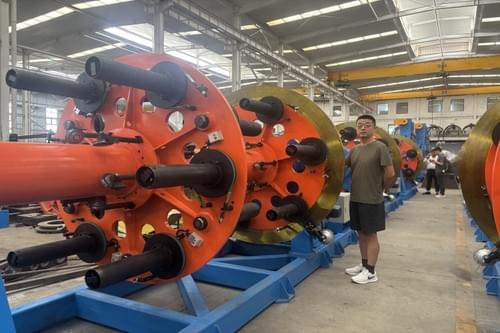

6+12+18+24 bobbin stranding cage:
Bobbin size in cage: PND630
Max rotating speed of stranding cage:
6 bobbins : 197r/min
12 bobbins: 178r/min
18 bobbins : 157r/min
24 bobbins : 133r/min
Stranding cage motor power:
6 bobbins: 75kw (AC)
12 bobbins : 75kw (AC)
18 bobbins : 75kw (AC)
24 bobbins : 75kw (AC)
Pitch range:350-1000mm Stepless adjustable on HMI
Stranding cage drive form: direct-connected independent motor drive
Stranding cage structure: integrated
Tension form of pay-off in cage: Belt type mechanical friction tension
Pulse type broken wire automatic stopping machine

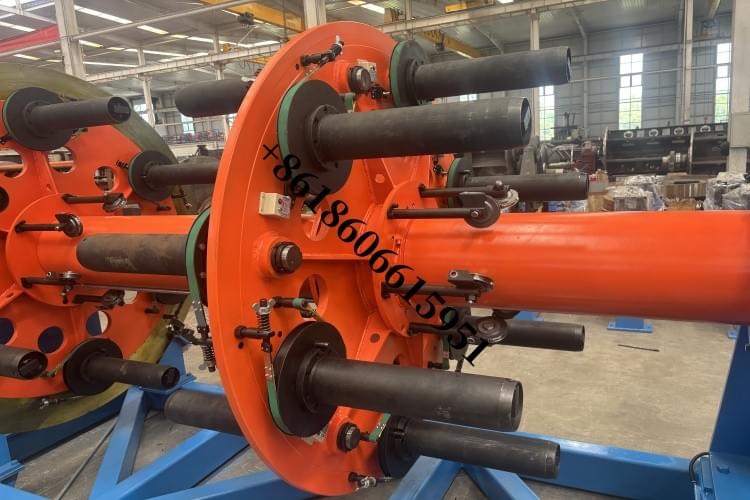

Structural form: Flat disc fork rod structure driven by an independent motor, with twisted bodies divided into 6 equal parts,. The twisting cage is supported on the front and rear supports by two sets of double row self-aligning roller bearings, ensuring the axial bearing capacity of the twisting cage.
Wire breakage monitoring: using DXJ fully automatic wire breakage detection system, electrical switch output, accurate and reliable. It can stop and brake in a timely manner when the wire is disconnected or used up, and can prompt show on the human-machine interface.
Loading method: Loading and unloading through the lifting device in the user's workshop, and the wire reel is locked with a locking pin to prevent it from being thrown out.
Tension form: A belt type mechanical friction,, and the tension size can be manually adjusted.
Braking form: The main cage brake adopts a disc flat air compression brake to reduce the impact of emergency stop inertia on the transmission components. Working principle of whole machine braking: Coordinated by a programmable logic controller (PLC), the variable frequency motor controller, braking resistor, air pressure proportional valve, etc. jointly complete the slow stop, fast stop, emergency stop and other operations of the whole machine.
There are control buttons such as emergency stop, jog, and disconnect control selection at the front end of each section of the cage, and a 220V power socket is provided for easy operation.
The whole machine is operated by a color touch screen on the human-machine interface, and is centrally coordinated and managed by a programmable logic controller (PLC).
Protective cover: It adopts a double-sided wall type safety protection net, which is made of porous plates and square tubes welded together. The protective net can be quickly removed

5. Electric control system:
The power supply: three-phase, five wire system: 480V (± 10%) 60Hz, total 420KW
The machine adopts separate motor drive (the motor adopts variable-frequency motor), each AC variable-frequency motor adopts frequency converter to control speed regulation, the whole machine control is managed by programmable controller, the touch screen controls operation, and the host is started after the alarm bell rings.
Frequency converter fault alarm.
Overload protection and power supply protection of winding and arranging lines.
Air press lack protection.
Break wire protection
Equipped with Ethernet interface for data uploading.
Programmable controller (PLC) can be connected to Ethernet to view fault information, or remotely view and update the operating system.

6. Main Brand

Bearing brand:（HRB.）
Low voltage appliance brand:（Schneider UL certificaion）
Brand of pneumatic component:（AIRTAC UL certificaion）
Brand of main drive motor:（WEG UL certificaion）
Brand of take-up motor:（WEG UL certificaion）
Brand of inverter:(Inovance UL certificaion)
Touch screen:Siemens S-200 UL certificaion）
PLC    :（Siemens 12 Inch UL certificaion）
Bolt grade:8.8 class
