1 x 7 Steel Wire Rope  Stranding Machine Tubular Closer 17mm

Purpose & Application
This Tubular Strander / Tubular Closer​ is a high-speed rotating-tube stranding machine designed for the production of 1×7 (1+6) steel wire rope and prestressed concrete steel strand​ with a finished diameter up to 17 mm​ (typical working range 9.53–17.8 mm).
The machine lays six outer wires uniformly around one central wire inside a rotating tubular cage, forming a compact, low-elongation spiral strand used as:
Prestressed concrete strand (PC strand) for bridges, slabs, and precast elements
Static stay cables, guy wires, and structural tension members
Architectural and balustrade stainless-steel rope (when 304/316 wire is used)
Galvanized carbon-steel control cables and small lifting cores.

Main technical parameters
Single wire diameter:Ø 1.0mm- Ø 5.0mm for ST
Max stranding diameter:Ø 17mm Max
Stranding pitch range:30 -500mm (Stepless adjustable)
Cage max rotation speed:550r/min(Actual production speed)
Linear speed range:20-120m/min

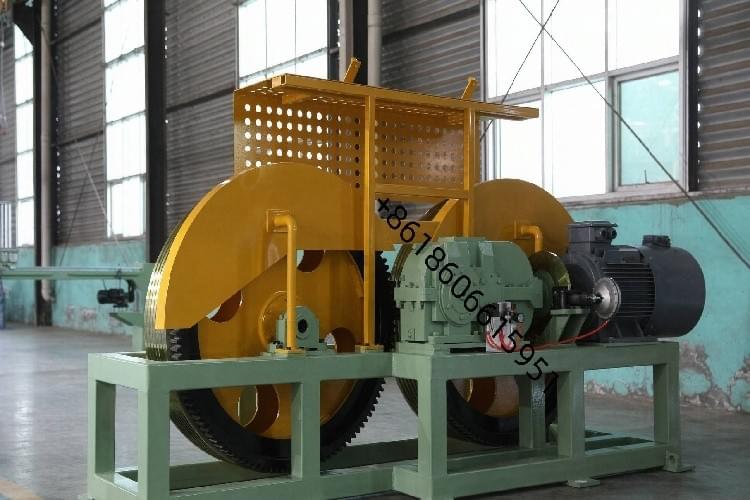

Capstan wheel diameter:Ø 1200+ Ø 1200mm
Pay-off bobbin size in cage:PND630

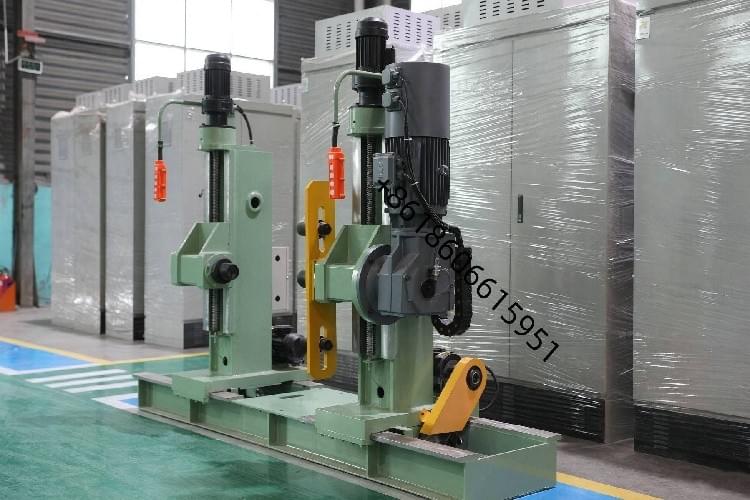

Take-up bobbin size:PN800-PN1600

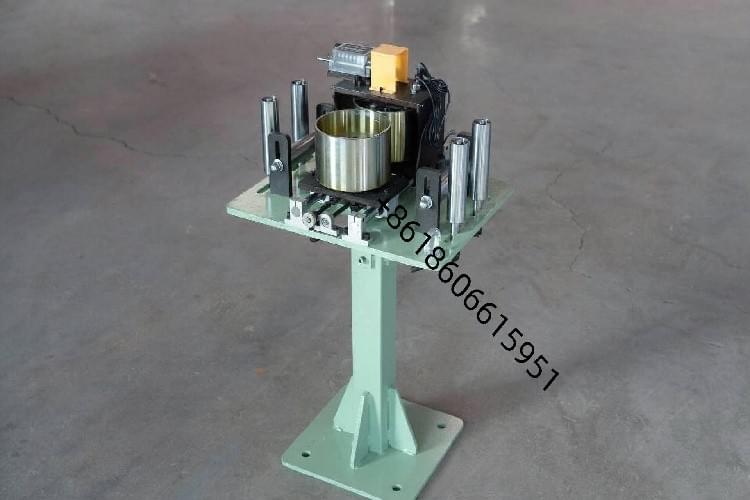

Center Pay-off bobbin size:PND630
Main motor power:55KW
Capstan motor power:30KW
Take-up motor power:5.5KW

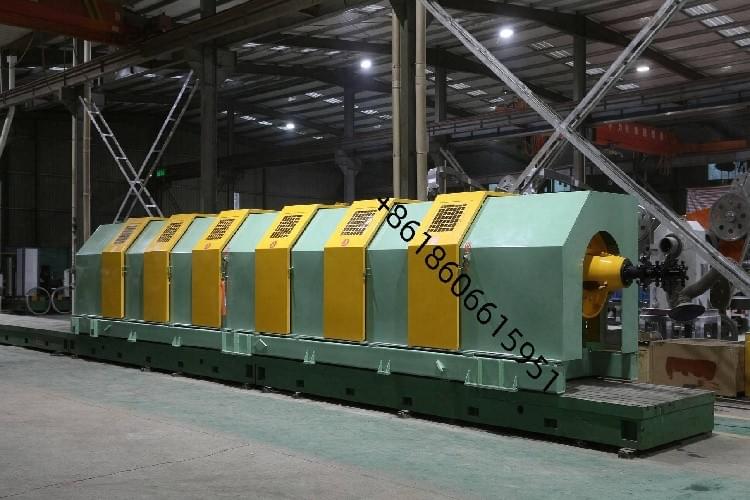

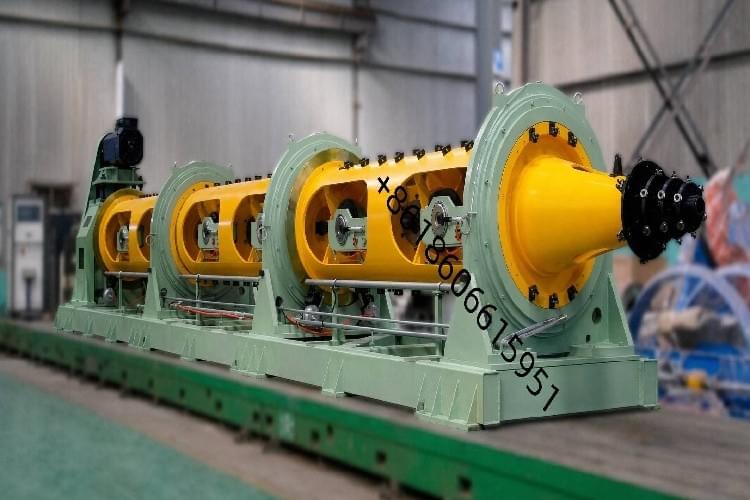

6 bobbins stranding cage
Pay-off reel specification: PND630mm
Max cage rotation speed: 700 rpm
Main motor power: 55 kW (AC)
Cradle tensioning method: Hysteresis tensioning; adjustable online

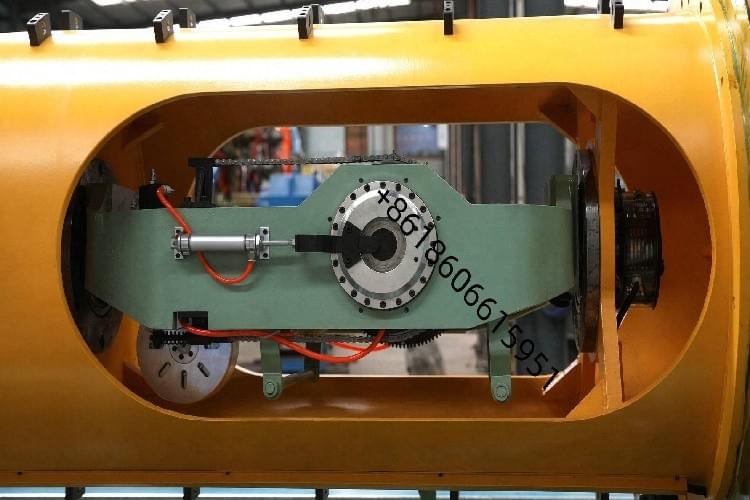

Reel loading/unloading: Pneumatic release/clamping; dual-cylinder interlocking anti-reverse mechanism
Wire break protection: Contact-based sensor
Cage support method: Two sets of bearing housings (3+3 configuration)
Bearing housing lubrication: Oil bath/circulating lubrication; high-temperature monitoring; automatic shutdown protection
Cage threading: External threading; convenient lead-in
Wire guide hole material: Tungsten carbide die
Cage drive method: Rear drive; vertical installation
Braking method: Pneumatic disc brake
Wire break stop method: Contact-based trigger (bottom bar)
Cradle reel handling: Pneumatic clamping/release; dual-cylinder interlocking anti-reverse; reel loading/unloading via user-supplied crane

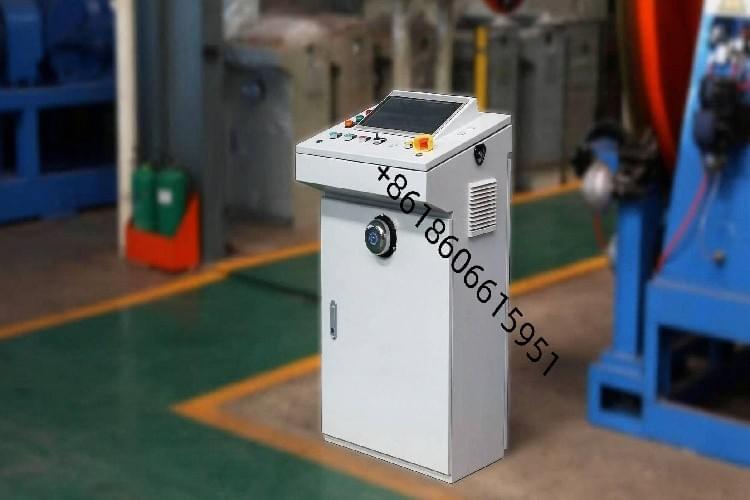

Cradle pay-off tension: Hysteresis tensioning; tension values set via touchscreen and adjustable online
Pay-off frame: Integrally welded structure; high machining precision; high mechanical strength; durable and deformation-resistant

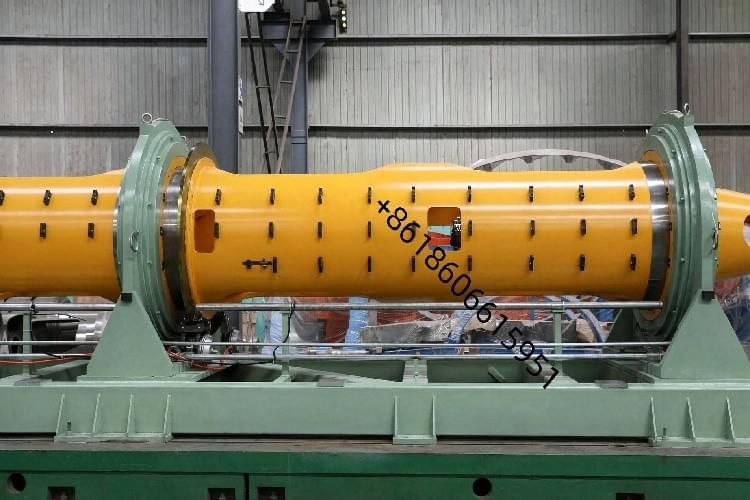

Cage support structure: Three-section (2+2+2) integral tube support; three sets of large bearings supporting the middle and exit ends; flanged connections
Lubrication method: Independent oil pump with circulating oil; provides both lubrication and cooling functions
High-temperature monitoring for large bearings; automatic shutdown with HMI notification
Braking method: Flat pneumatic disc brake system; PLC-coordinated operation involving servo/VFD motor controllers, braking resistors, and pneumatic brakes to execute slow stops, fast stops, and emergency stops; ensures system synchronization
Main unit features external wire routing; Ø17mm wire guide holes
Safety guard: Axial sliding door structure; pneumatic opening/closing; built-in sound-absorbing panels; includes safety interlock.

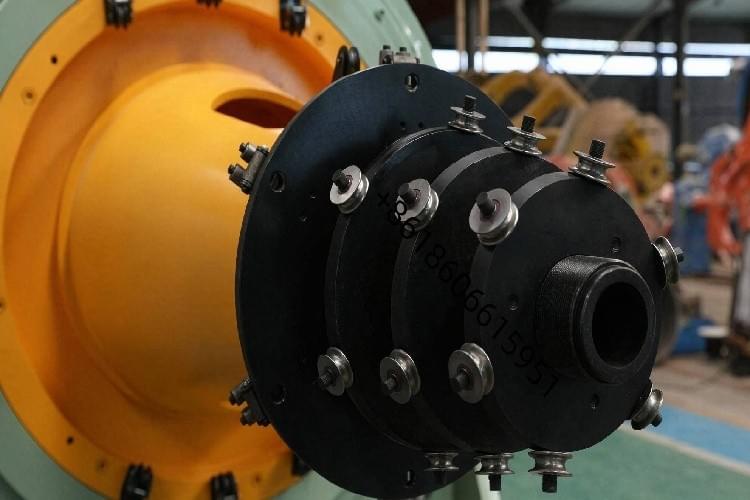

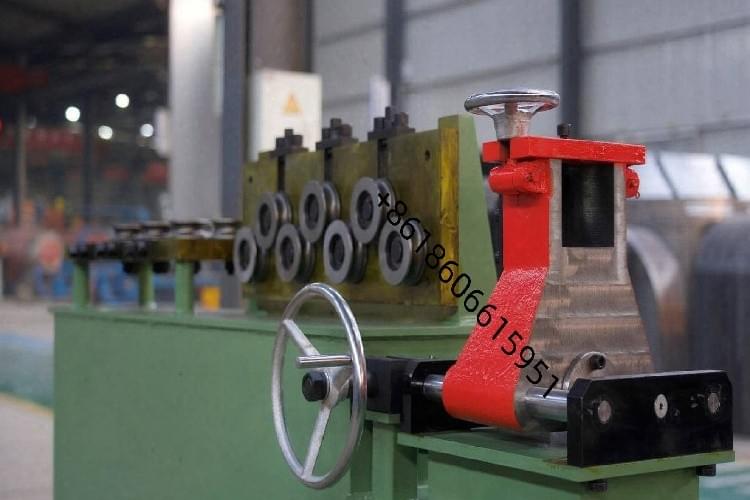

Wire gathering plate: Assembly consisting of a 6-hole distribution plate and a pre-forming device
